We created a brain atlas that is an interactive tool for studying the conventional anatomy of the normal brain based on a magnetic resonance imaging exam of the axial brain. Anatomical structures and specific areas are visible as interactive labeled images.



Cross sectional anatomy: MRI of the brain

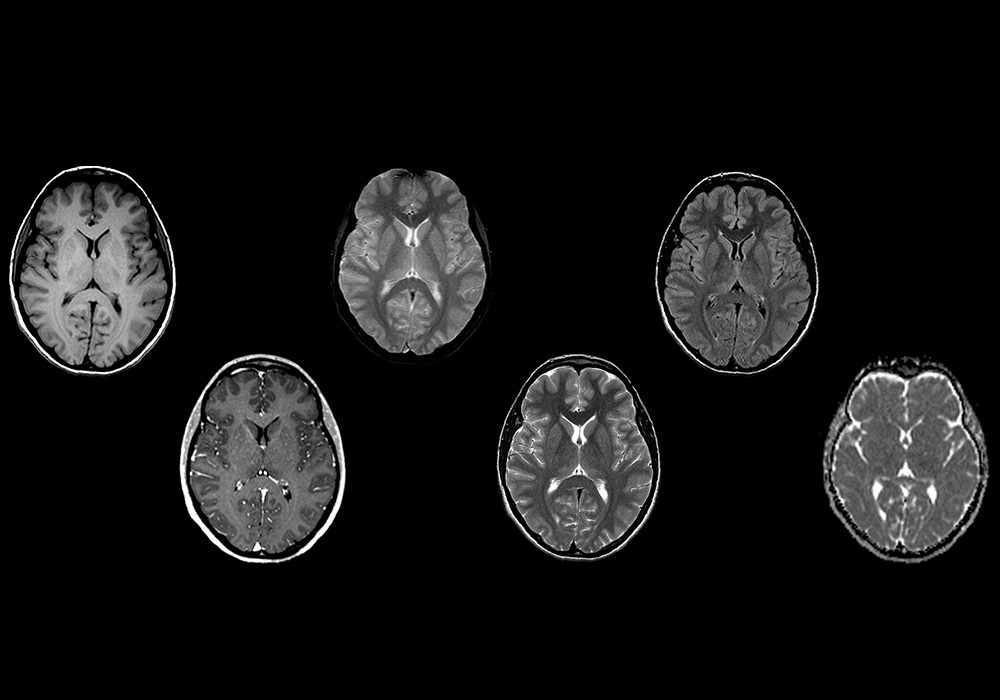

  • An MRI was performed on a healthy subject, with several acquisitions with different weightings: spin-echo T1, T2 and FLAIR, T2 gradient-echo, diffusion, and T1 after gadolinium injection. We obtained 24 axial slices of the normal brain.
  • Data and DICOM images archived on our PACS (Picture Archiving and Communicating System) were processed and exported as JPEG images. Adobe Animate and Adobe Photoshop allowed us to develop an atlas-based application with suitable features and user-friendly interface for exploration of the neuroanatomy.
  • Anatomical structures were labeled according to the Terminologia Anatomica.



Cross sectional anatomy of the brain: a module based on MRI
Cross sectional anatomy of the brain: a module based on MRI



Anatomy of the brain: how to view anatomical labels

  • This module is a comprehensive and affordable learning tool for medical students and residents and especially for neuroradiologists and radiation oncologists.
    It provides access to an atlas and to images in axial planes, allowing the user to learn and review neuroanatomy interactively. Images are labeled, providing an invaluable teaching resource. The quiz mode allows the comprehensive evaluation of user progress.
  • The horizontal menu gives access to several groups of anatomical structures: encephalic sulci and gyri, limbic system, white matter, ventricle and cisterns architecture, basal nuclei and related structures, optic tract, cerebellum with its lobes according to numbered nomenclature, spinal cord. The study of the vascularisation of the brain is possible with the arteries and venous sinuses sections. Pituitary and pineal glands are regrouped as “gland”.
  • As the cursor is moved over a particular anatomical area, that area is highlighted and labeled: this feature has been chosen to show encephalic lobes: frontal, occipital, parietal, temporal, insula, cerebellum (anterior, posterior and flocculonodular lobes).
  • The MRI is a particularly powerful exam for studying structures such as diencephalon, mesencephalon (mid brain), pons, myelencephalon (medulla oblongata, bulb) and spinal cord.
  • The vertical left menu provides reference images on coronal and sagittal views of the brain, with anatomical schemas based on a three dimensional (3D) model.

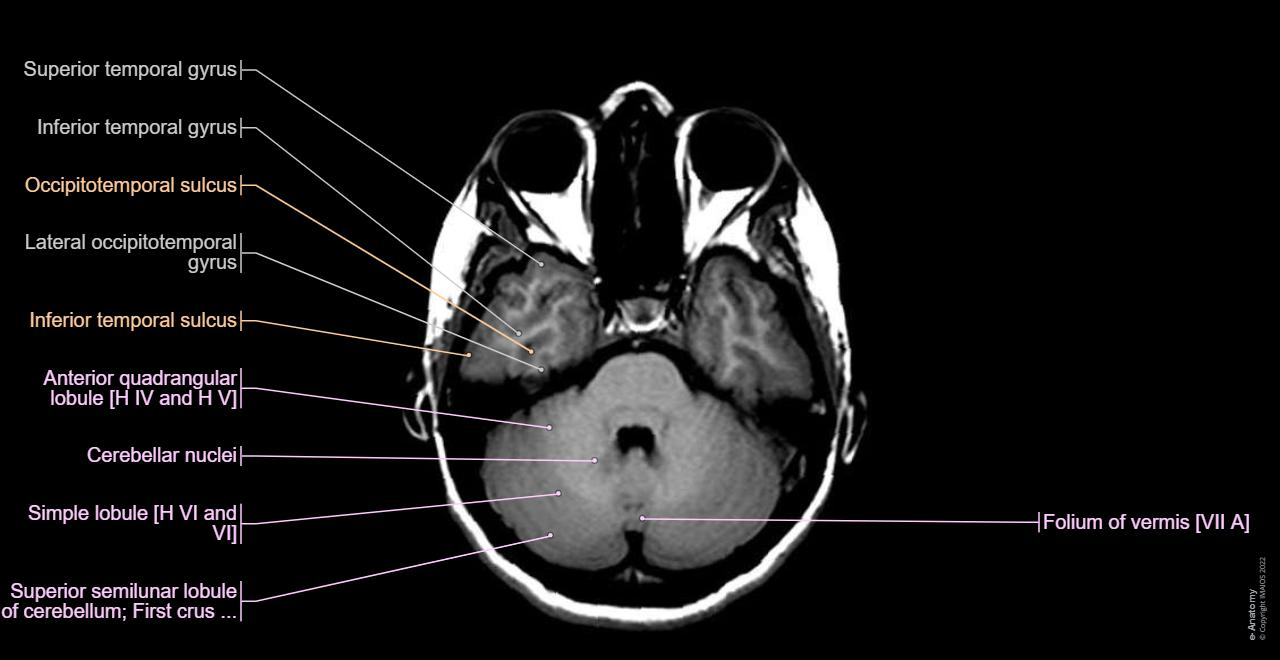

Anatomy of the brain: axial slice T1 weighted
Anatomy of the brain: axial slice T1 weighted
Cross sectional anatomy of the brain: a module based on MRI
Cross sectional anatomy of the brain: a module based on MRI

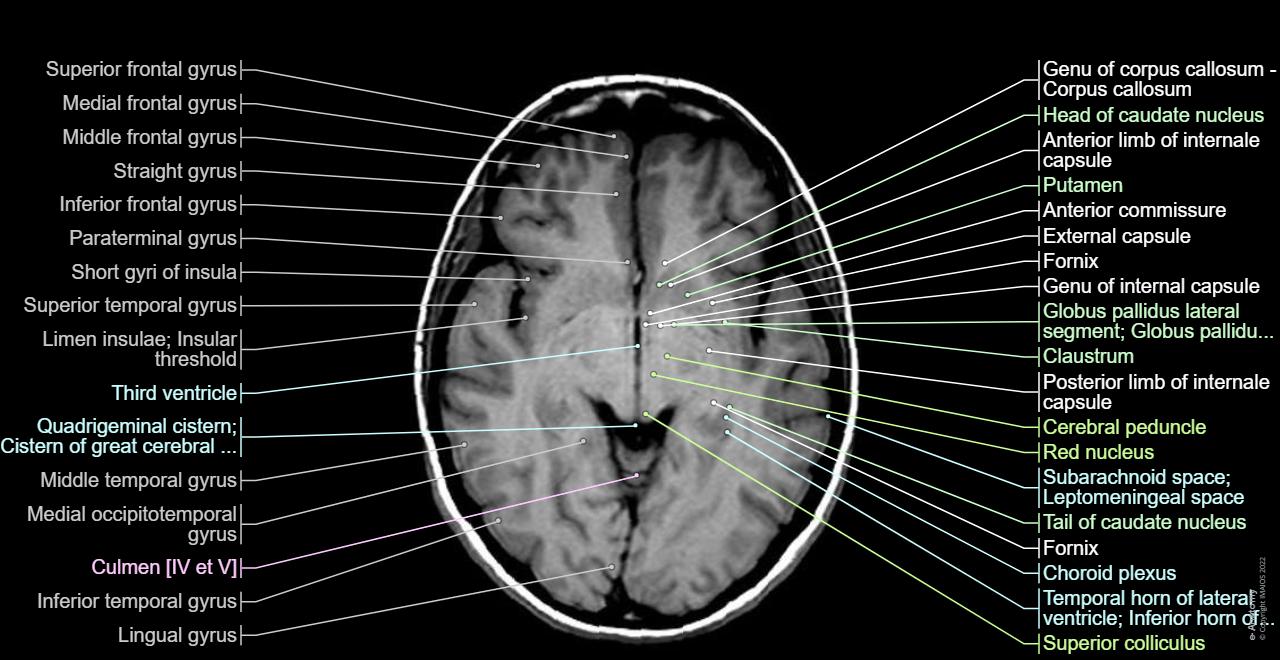

Anatomy of the brain: axial slice T1 weighted
Anatomy of the brain: axial slice T1 weighted
