Introduction

This e-Anatomy module contains fifty four illustrations dedicated to the anatomy of the teeth.

These fully annotated anatomical illustrations are presented as a comprehensive atlas of the dental anatomy specifically designed for students in dentistry and medicine, residents and healthcare professionals.

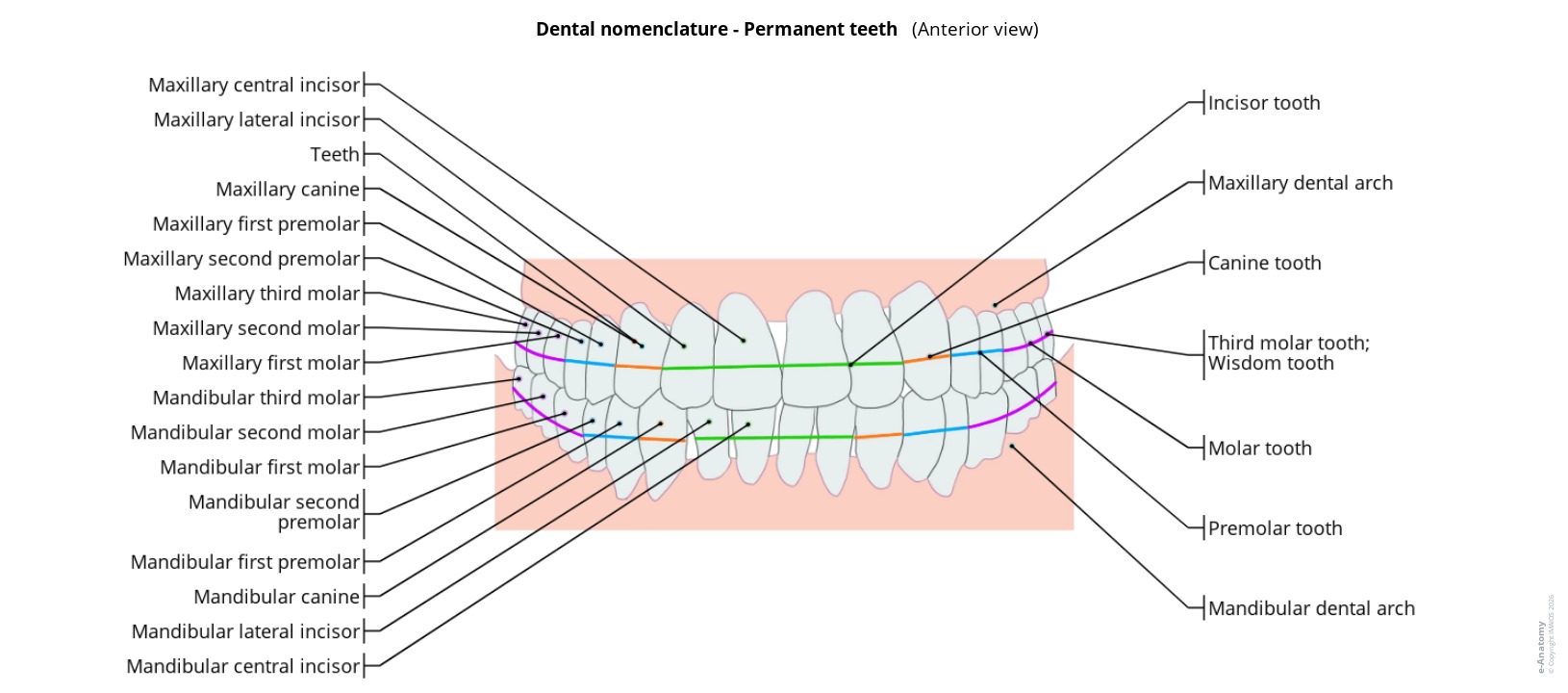

Labeled diagram of the nomenclature of permanent teeth in humans
Anterior view of the human dentition showing the nomenclature of the permanent teeth: incisors, canines, premolars and molars

Material and methods

Fifty four illustrations have been created, covering the general anatomy of the teeth, the terminology and nomenclature used in dentistry (particularly for the surfaces, orientations, cusps and roots of the teeth), the different dental numbering systems (FDI World Dental Federation notation or Universal Numbering System) and the study of dental occlusion.

Each permanent tooth has been illustrated on a single image with a systematic approach (each illustration contains the mesial, distal, vestibular, palatal/lingual and occlusal views of each tooth).

These original anatomical illustrations and the labeling were done by Antoine Micheau MD (Radiologist - Montpellier, France), based on the Terminologia Anatomica 1. Some illustrations were partially drawn and  labeled by Gauthier Kervyn and Pierre Zabarino.

The illustrations have been grouped into different themes:

  • General Anatomy
  • Dental terminology and nomenclature
  • Dental occlusion
  • Maxillary dental arch
  • Mandibular dental arch
  • Panoramic X-ray diagram
  • Deciduous teeth

Key images

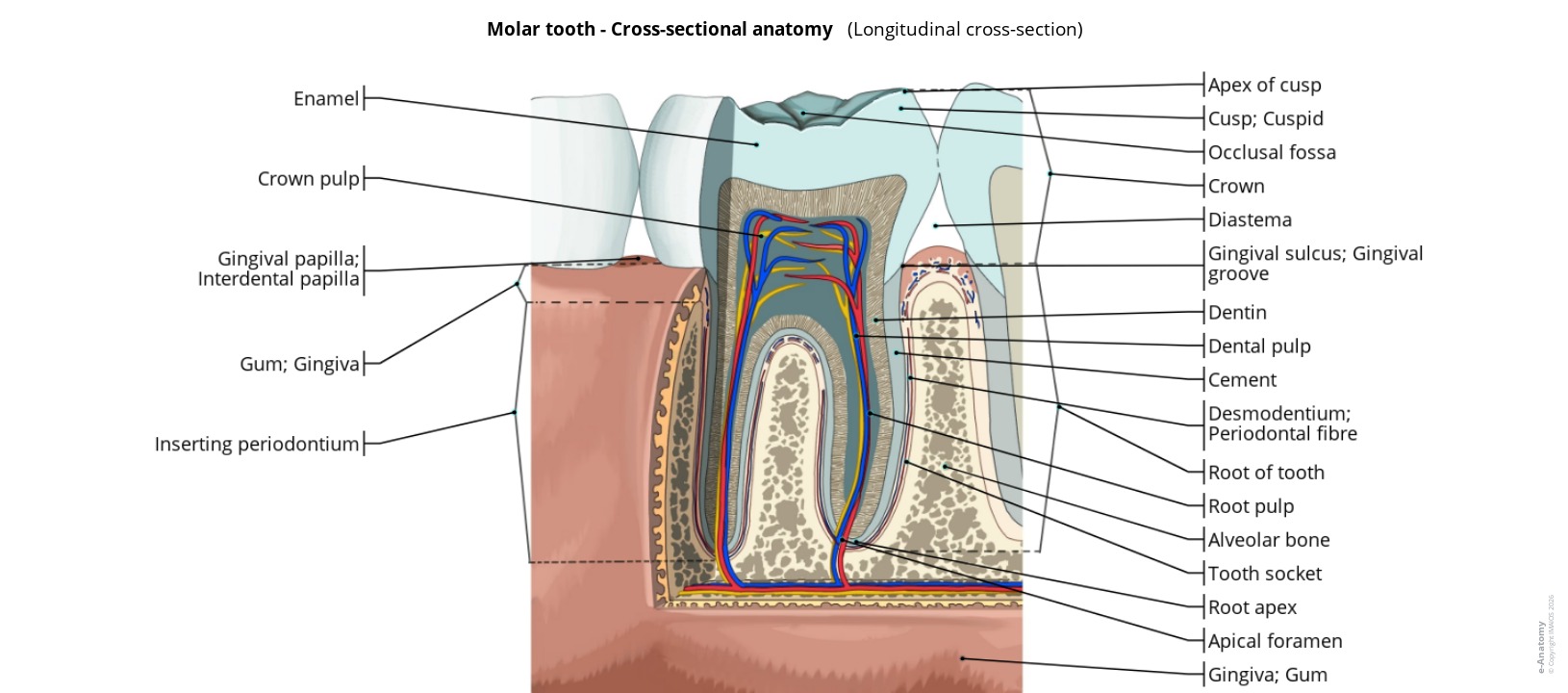

Anatomy of human molars: labeled longitudinal section
Labeled longitudinal section of a human molar showing the dentin, the dental pulp, the dental alveolus and the alveolar bone

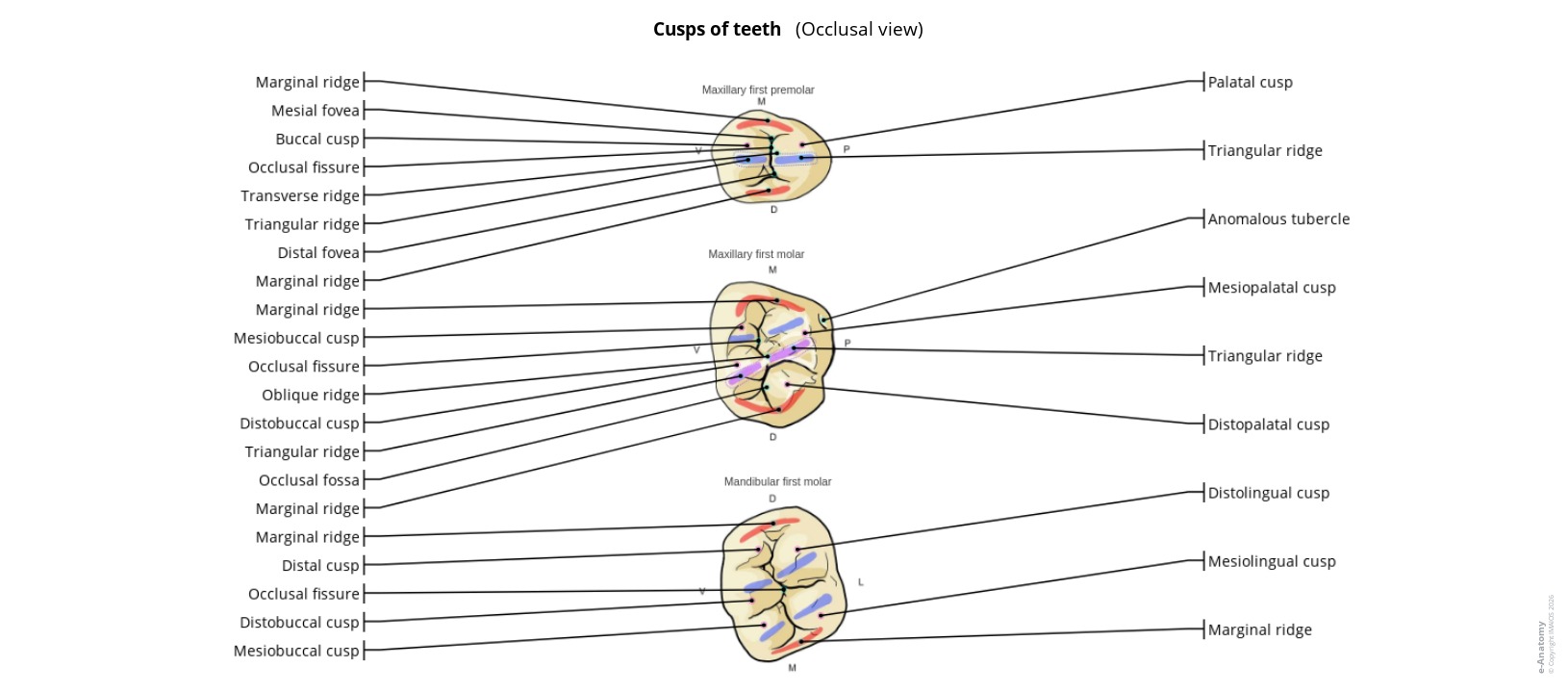

Labeled atlas of dental anatomy: cusps of molars and premolars
Labeled anatomical atlas of human teeth in occlusal view, showing the different cusps, ridges and fissures of the molars and premolars
Labeled diagram of the nomenclature of permanent teeth in humans
Anterior view of the human dentition showing the nomenclature of the permanent teeth: incisors, canines, premolars and molars
Anatomy of human molars: labeled longitudinal section
Labeled longitudinal section of a human molar showing the dentin, the dental pulp, the dental alveolus and the alveolar bone
Labeled atlas of dental anatomy: cusps of molars and premolars
Labeled anatomical atlas of human teeth in occlusal view, showing the different cusps, ridges and fissures of the molars and premolars
  • Terminologia anatomica: international anatomical terminology By the Federative Committee on Anatomical Terminology (FCAT).  Stuttgart:  Georg Thieme Verlag.  ISBN-10: 3-13-114361-4. ISBN-13: 978-3-13-114361-7
  • Pocket Atlas of Human Anatomy: 5th edition - W. Dauber, Founded by Heinz Feneis
  • Dental Radiology - Fuhrmann, A. - ISBN: 3132004219, 7831320042 - Thieme
  • Anatomy for dental medicine - Baker, Eric W., Michael Schünke, Erik Schulte, and Udo Schumacher. Thieme. 2015.
  • Anatomie topographique, descriptive et fonctionnelle – Alain Bouchet, Jacques Cuilleret – Editions Masson (1991) - Langue : Français - ISBN-10: 2225824673 - ISBN-13: 978-2225824678
