简介

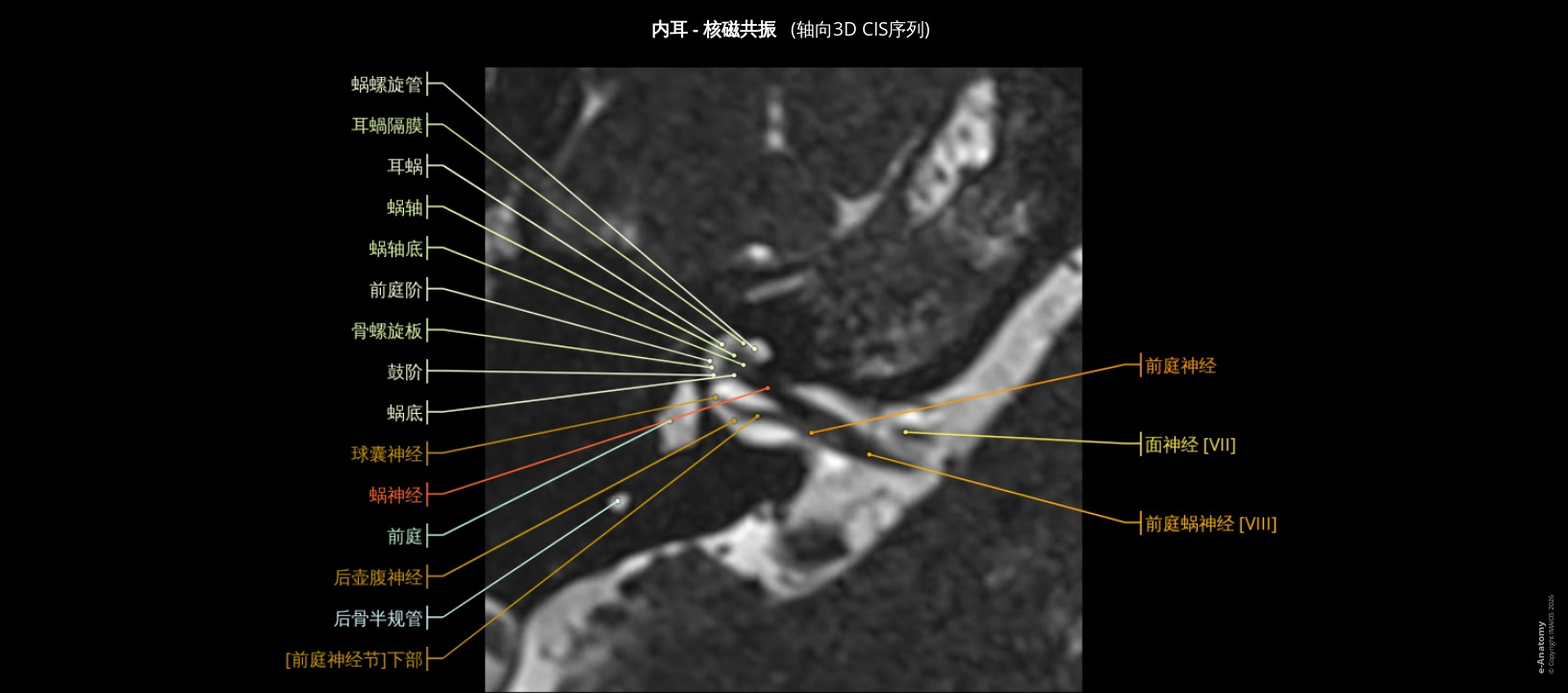

e-Anatomy 的这个解剖单元专用于内耳(耳蜗、骨和前庭迷路)的解剖,以及后颅窝高画质T2图像上的内耳道听神经和面神经的正常MRI外观。
此桥小脑角和颞骨的神经解剖图集旨在透过基本平面(轴向和两个斜矢状平面)、空间定位和彩色文本图例中带注释的MR重建,帮助放射科医生的日常实践(前庭神经鞘瘤、听力损失、前庭综合症等的 MRI)


材料与方法

Antoine Micheau M.D.(法国蒙彼利埃放射科医师)在 1.5T Siemens Magnetom Sola 上对一名健康的 35 岁女性患者进行了内耳的 T2 3D CISS(稳态建设性干扰)序列,

从而获得了后颅窝的 44 张图像,厚度为 0.6 mm。

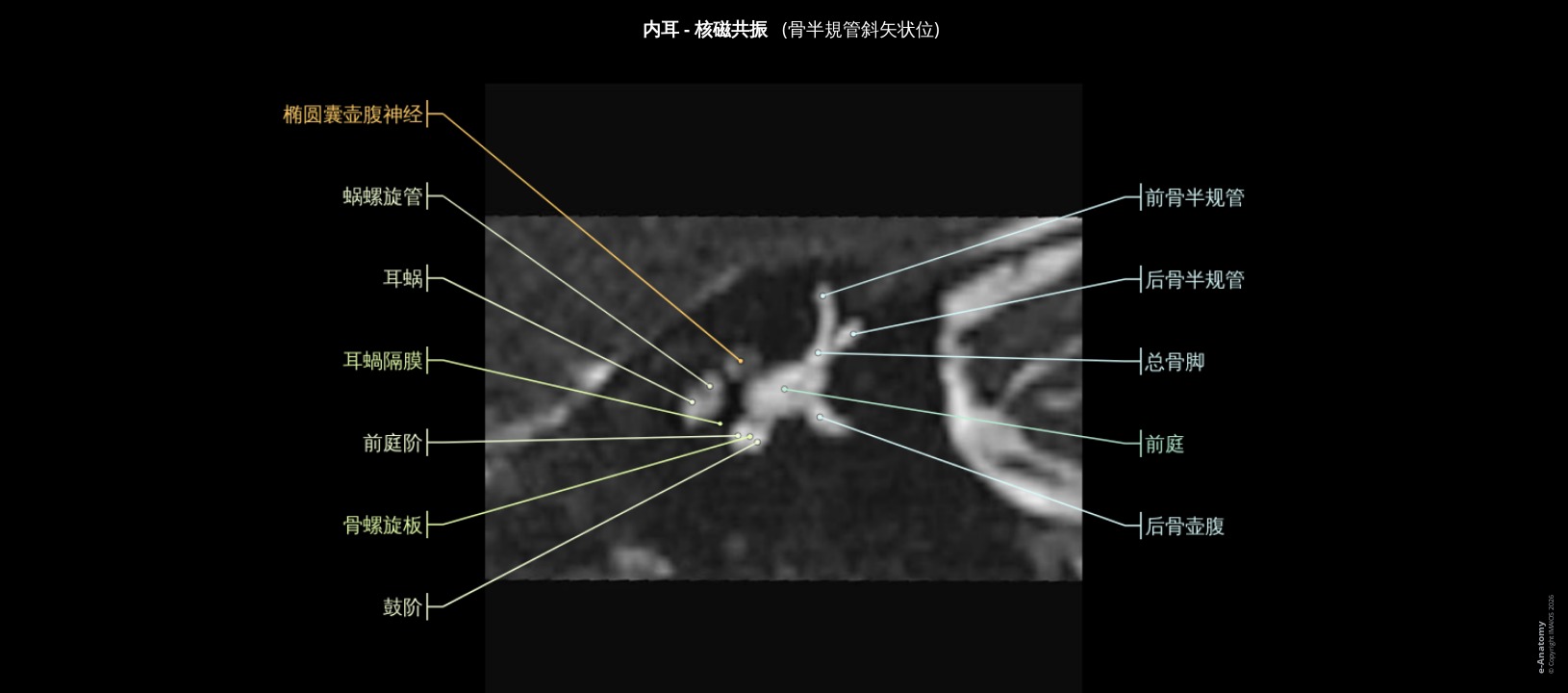

我们使用Horos对MRI图像进行后处理,以获得两个不同斜矢状面(垂直于内耳道的系列和沿前半规管轴的系列)的MPR重建,

之后裁剪图像来聚焦在右侧颞骨和小脑桥脑角。

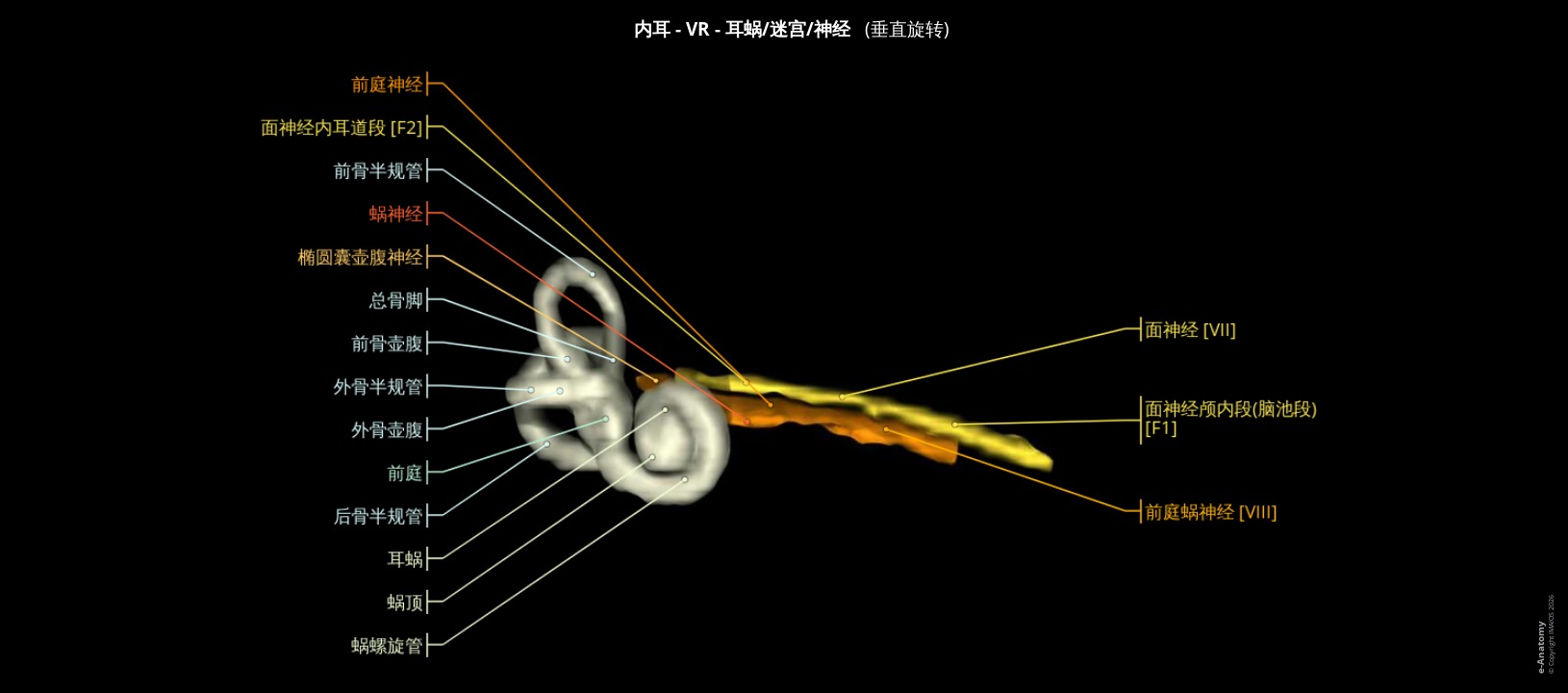

内耳(耳蜗、半规管和前庭)、面部和前庭耳蜗神经的3D图像是由 Samuel Merigeaud 博士(法国蒙彼利埃Tridilogy公司)使用VG Studio Max上的 MRI原始图像创建的。

解剖标记是由Antoine Micheau M.D.(法国蒙彼利埃放射科医师)使用 Terminologia Anatomica 2 和 Terminologia Neuroanatomica写上的。

鸣谢Sophie Menjot de Champfleur M.D.(法国蒙彼利埃神经放射学家和耳鼻喉科成像参考)的帮助和医疗建议,对创建此单元至关重要。
