This module of e-Anatomy is dedicated to the vascular anatomy of the arteries of the brain based on a a Time-Of-Flight (TOF) Magnetic Resonance Angiography (MRA).

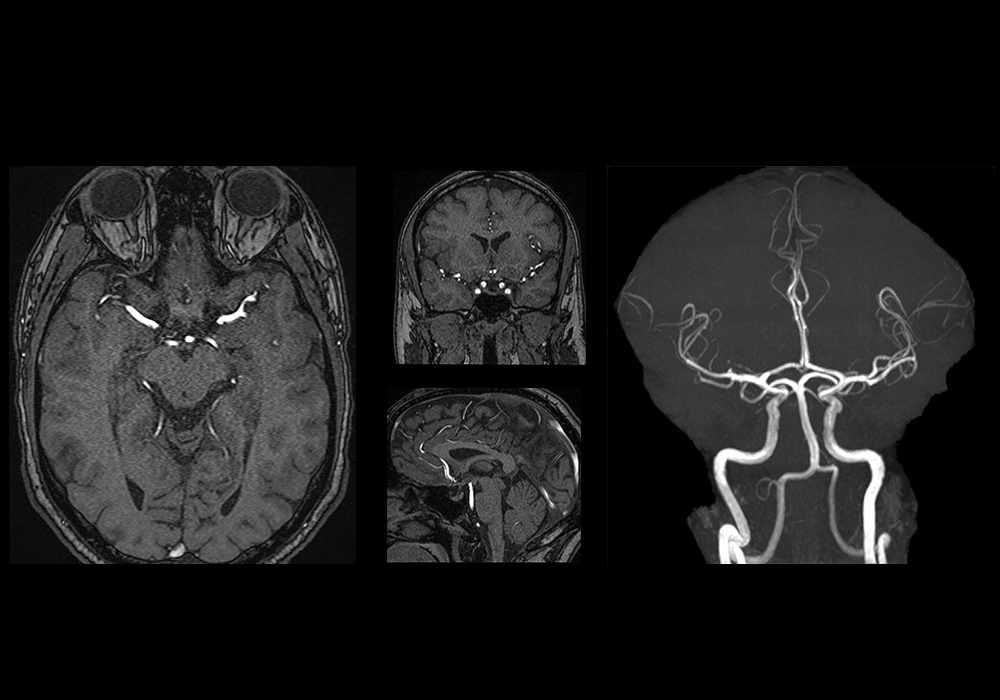

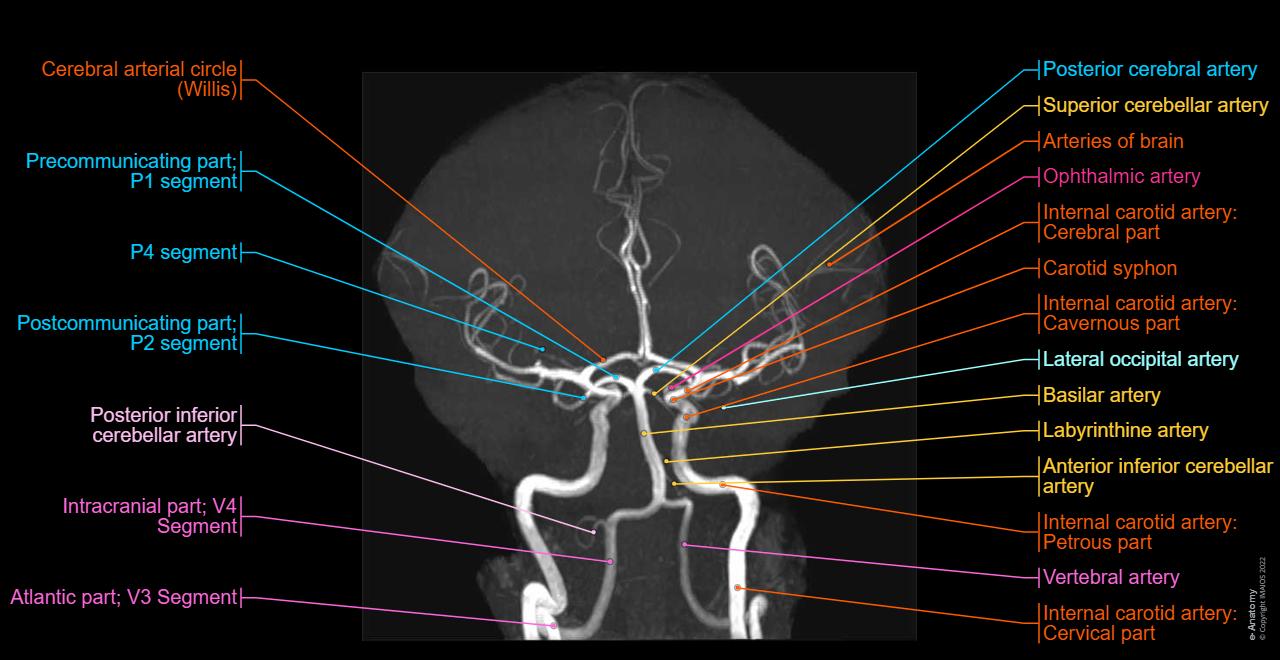

Atlas of arteries of the brain on a Time-Of-Flight (TOF) Magnetic Resonance Angiography (MRA)
Atlas of arteries of the brain on a Time-Of-Flight (TOF) Magnetic Resonance Angiography (MRA)

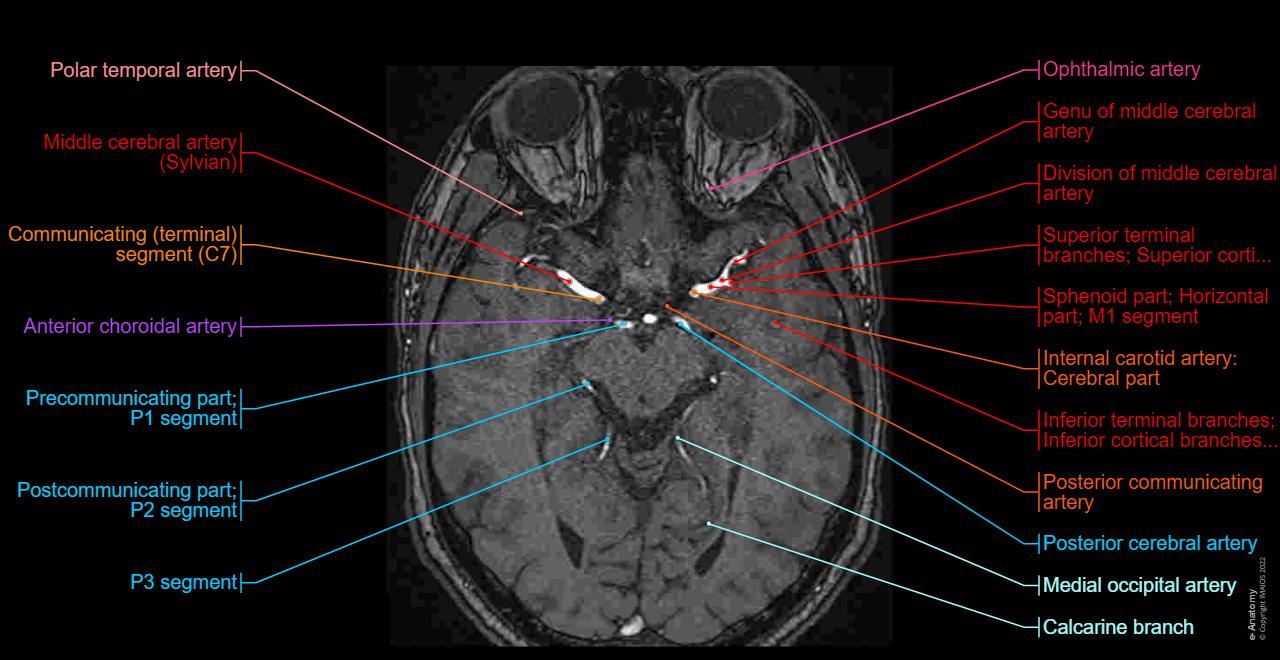

Cerebral arterial circle - MRI: TOF - Axial view
Cerebral arterial circle - MRI: TOF - Axial view

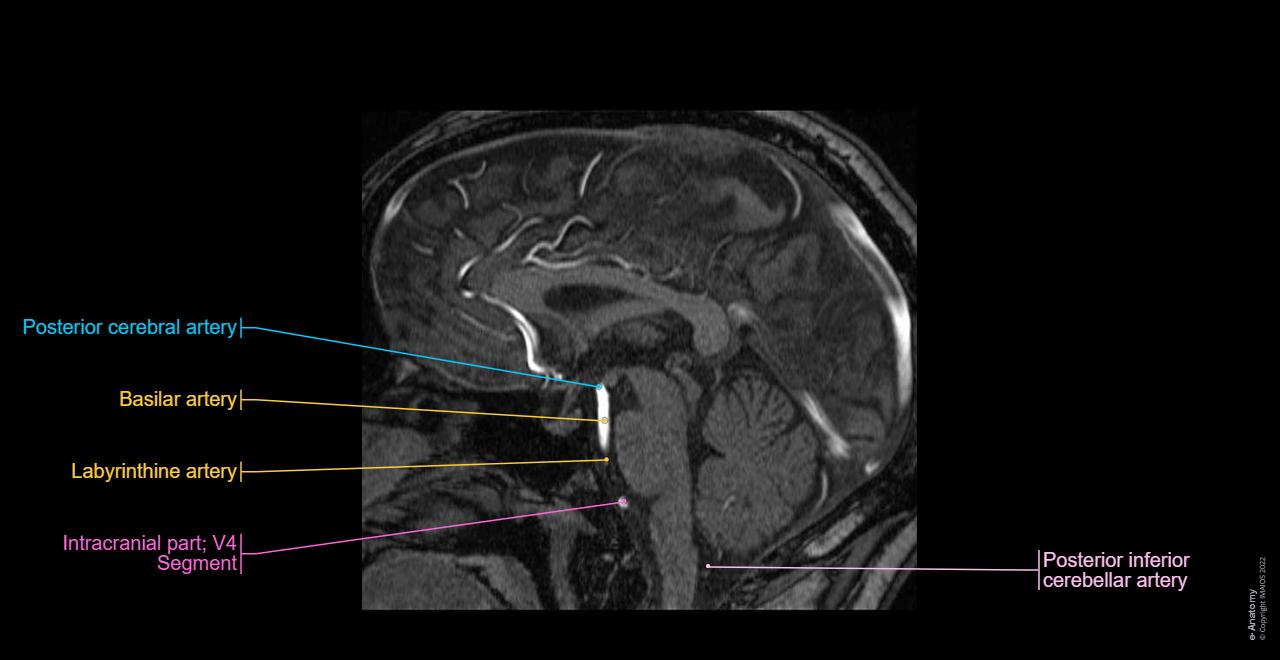

Normal neurovascular anatomy of the arteries of the brain on a Time-Of-Flight (TOF) Magnetic Resonance Angiography (MRA): Sagittal view
Normal neurovascular anatomy of the arteries of the brain on a Time-Of-Flight (TOF) Magnetic Resonance Angiography (MRA): Sagittal view

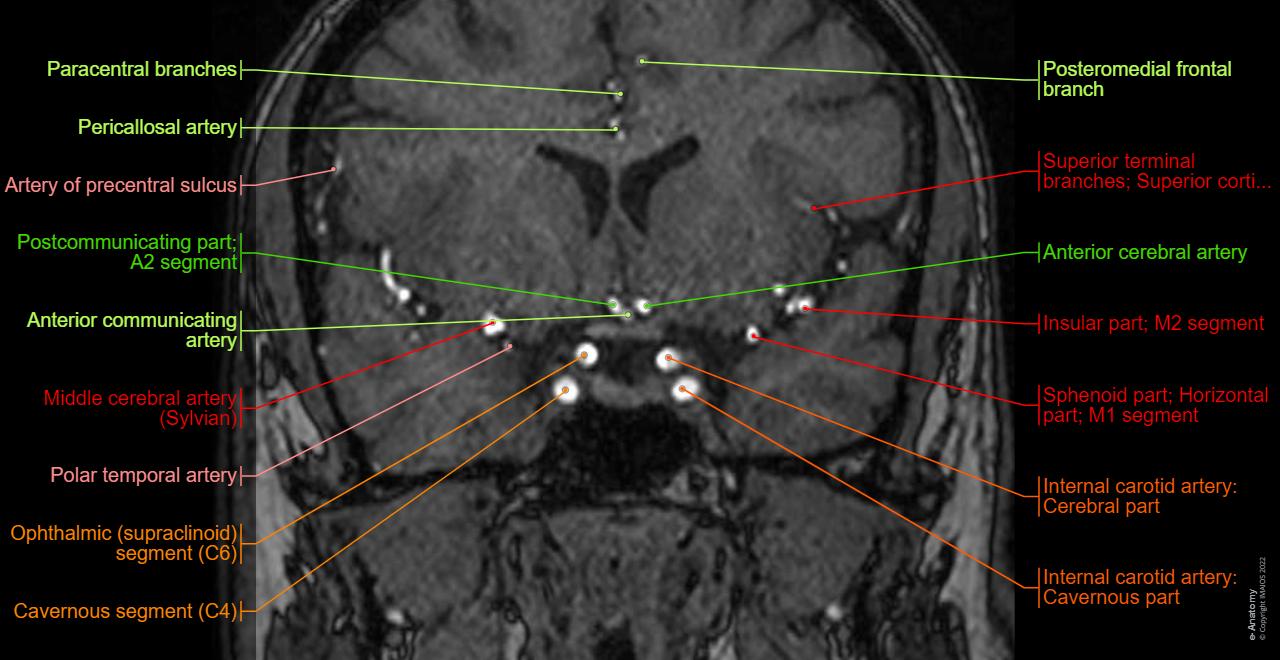

Anatomy of arteries of the brain and circle of Willis on a TOF MRA: Coronal section
Anatomy of arteries of the brain and circle of Willis on a TOF MRA: Coronal section

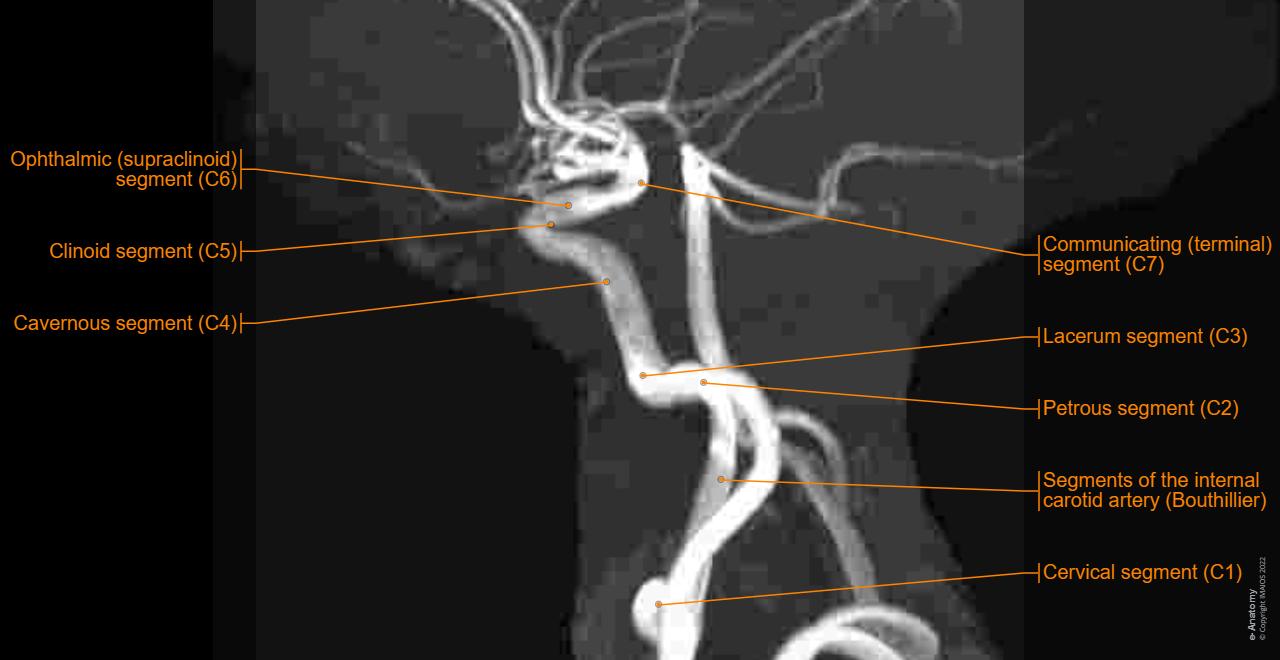

Segments of the internal carotid artery (Bouthillier): TOF-3D-MIP
Segments of the internal carotid artery (Bouthillier): TOF-3D-MIP

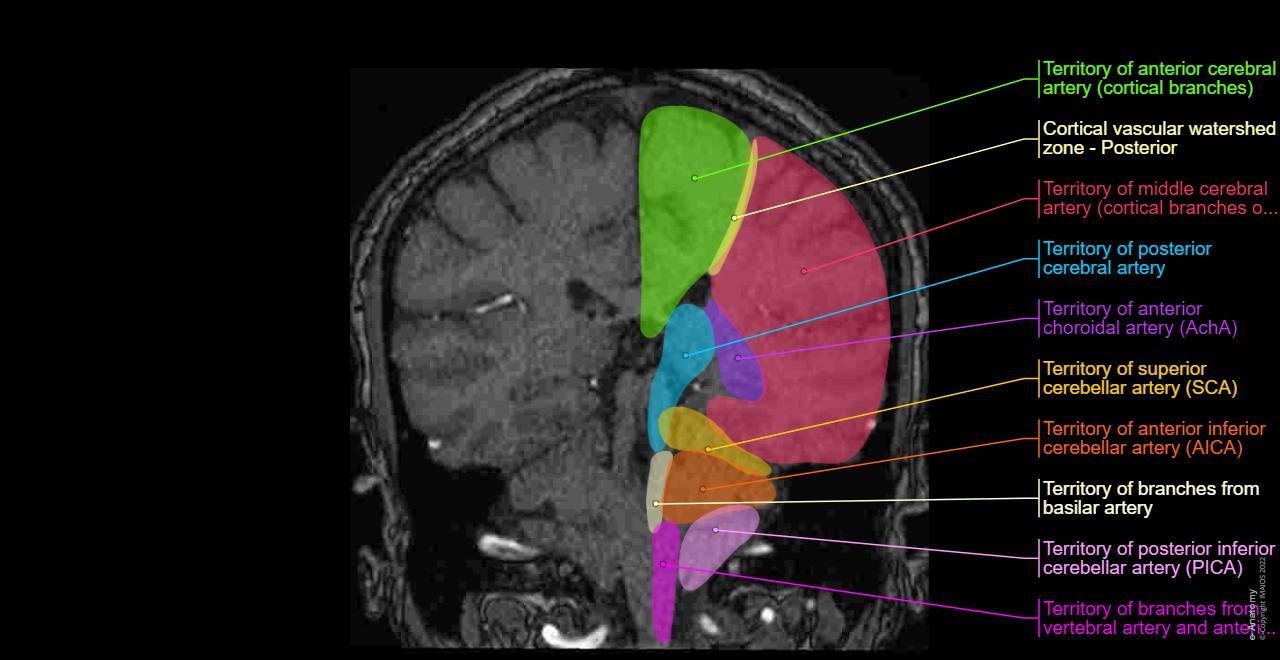

Arteries of brain: Vasculary territories - Brain - MRI
Arteries of brain: Vasculary territories - Brain - MRI





Atlas of arteries of the brain on a Time-Of-Flight (TOF) Magnetic Resonance Angiography (MRA)
Atlas of arteries of the brain on a Time
Cerebral arterial circle - MRI: TOF - Axial view
Cerebral arterial circle
Normal neurovascular anatomy of the arteries of the brain on a Time-Of-Flight (TOF) Magnetic Resonance Angiography (MRA): Sagittal view
Normal neurovascular anatomy of the arteries of the brain on a Time
Anatomy of arteries of the brain and circle of Willis on a TOF MRA: Coronal section
Anatomy of arteries of the brain and circle of Willis on a TOF MRA: Coronal section
Segments of the internal carotid artery (Bouthillier): TOF-3D-MIP
Segments of the internal carotid artery (Bouthillier): TOF
Arteries of brain: Vasculary territories - Brain - MRI
Arteries of brain: Vasculary territories
