Neurovascular anatomy on a brain DSA (Digital Subtraction Angiography)

Neurovascular anatomy on a brain DSA (Digital Subtraction Angiography)

Neurovascular anatomy on a brain DSA (Digital Subtraction Angiography)


This anatomy module of e-Anatomy was designed and created by MD Micheau Antoine and MD Hoa Denis, radiologists in Montpellier (France). It is mainly intended to be used by residents or students as an introduction to the vascular anatomy of the brain. Neurointerventional radiology requires such a diverse anatomical knowledge that its anatomy cannot be combined into a single module.

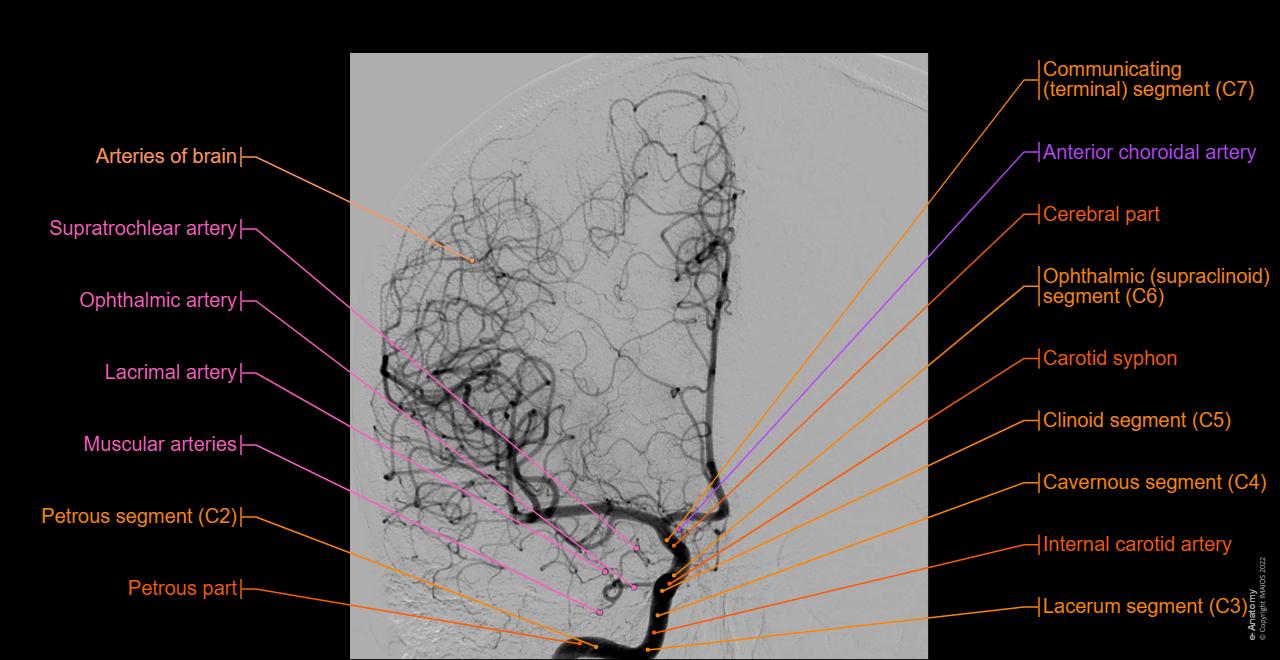

Atlas of normal neurovascular anatomy of arteries of the brain on a cerebral angiogaphy



Venous sinuses - Angiography

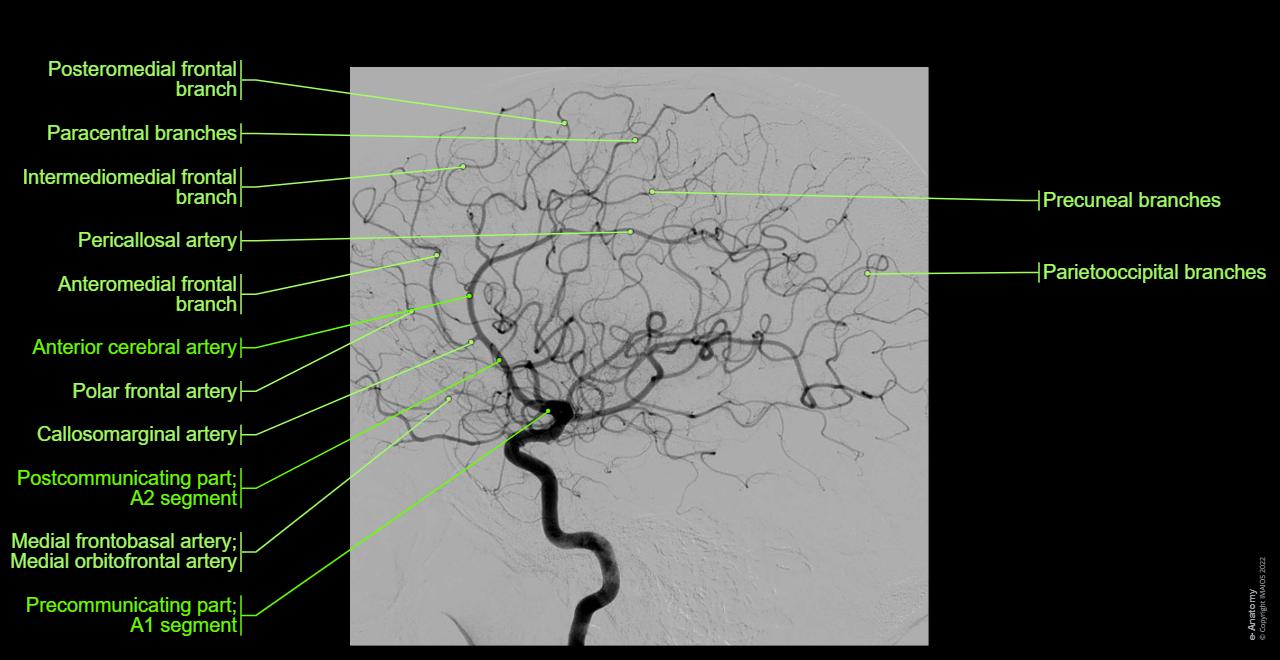

Cerebral angiography: Anterior cerebral artery

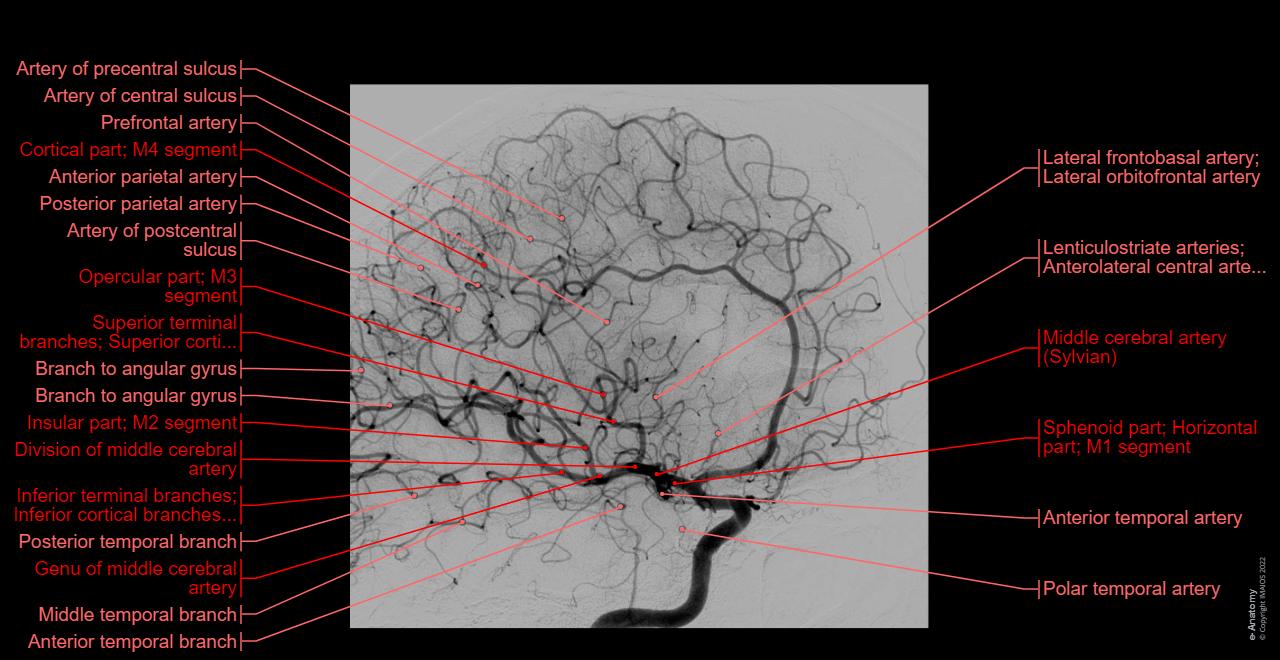

Brain - Angiography: Middle cerebral artery

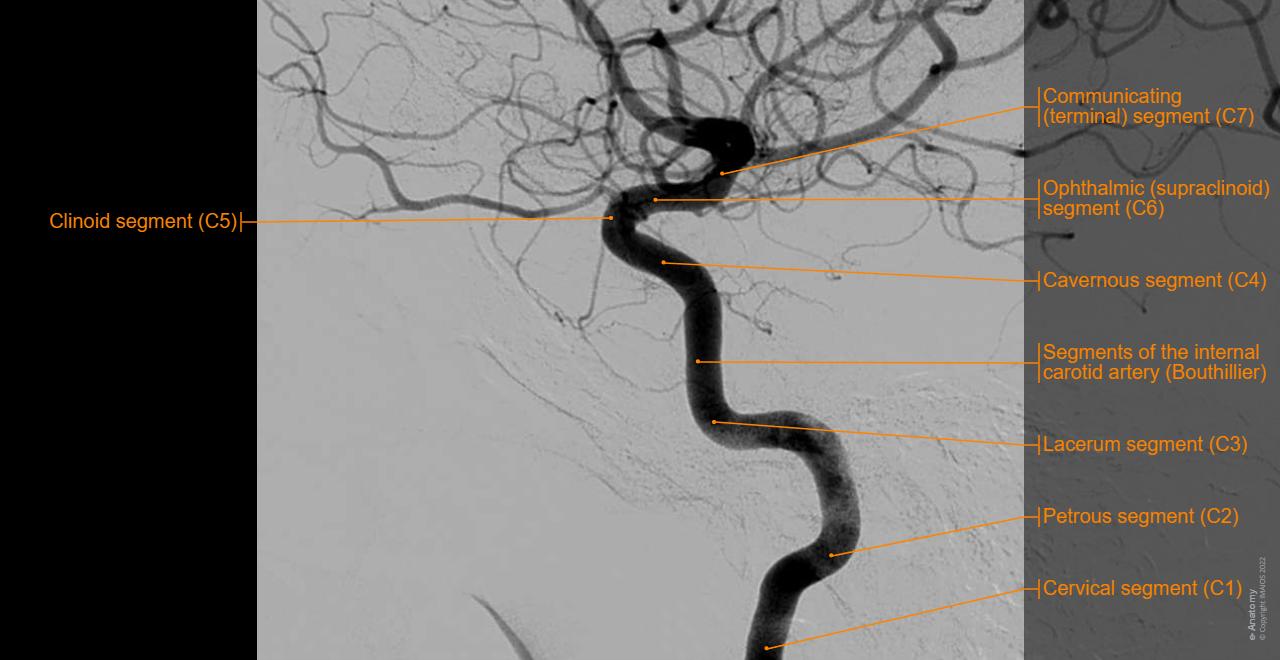

Segments of the internal carotid artery (Bouthillier) - Angiography: Cervical segment (C1), Petrous segment (C2)...
Segments of the internal carotid artery (Bouthillier) - Angiography



Carotid bifurcation - Carotid sinus
Carotid bifurcation - Carotid sinus

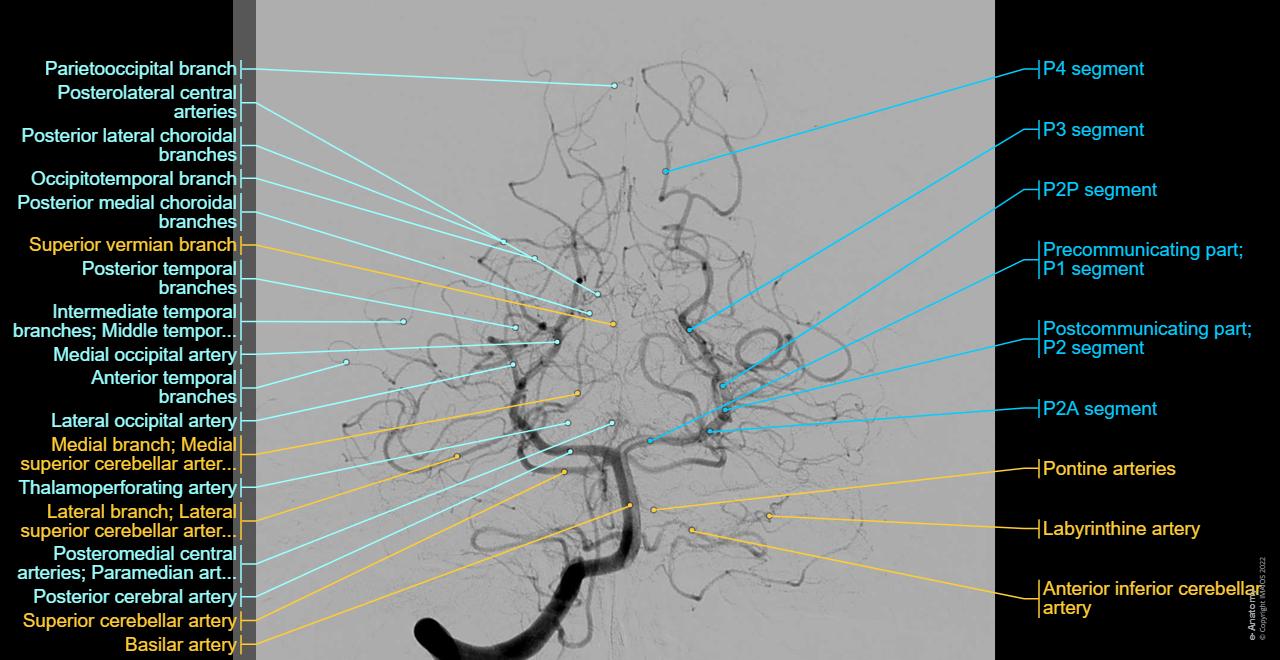

Posterior cerebral artery - Anatomy (Angiography)
Posterior cerebral artery - Anatomy (Angiography)

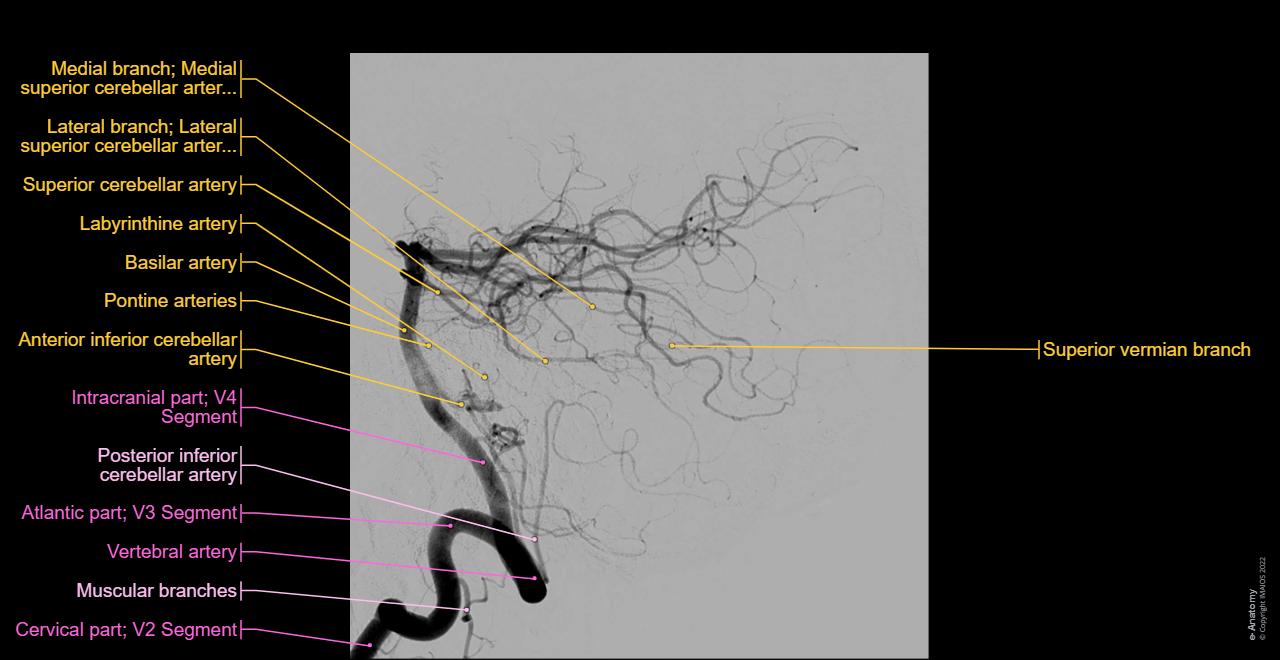

Vertebral artery - Basilar artery:Cerebral angiography - Lateral view
Vertebral artery - Basilar artery:Cerebral angiography - Lateral view

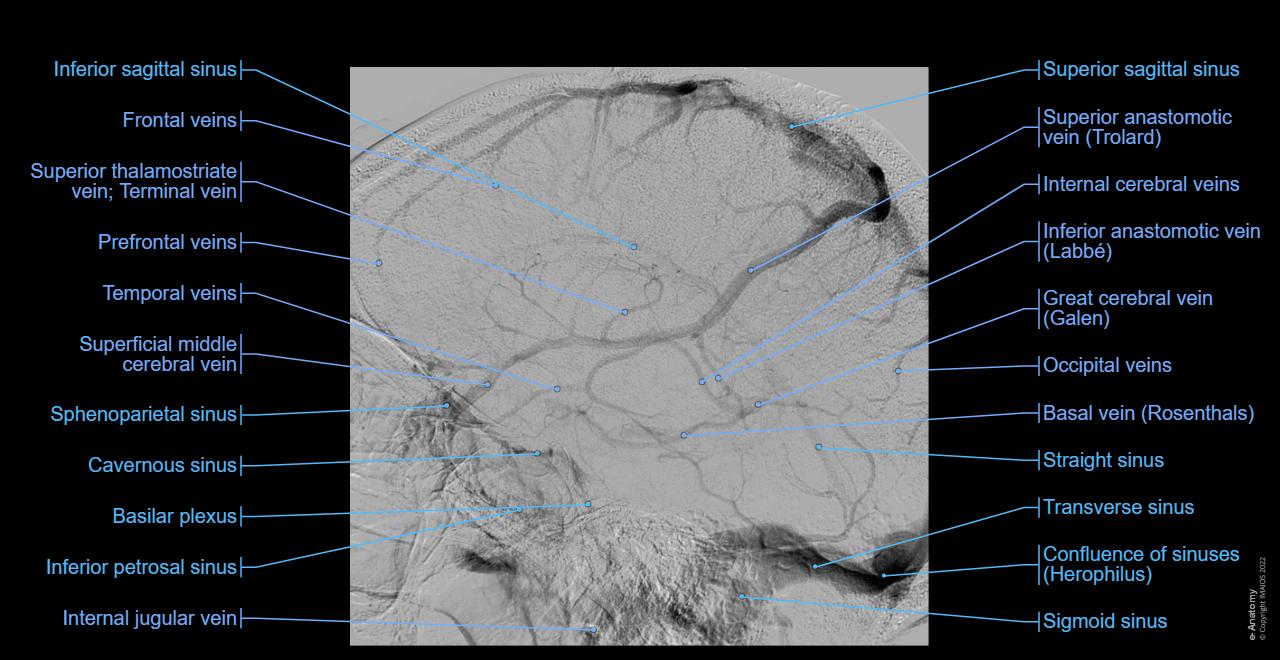

Dural venous sinuses - Cerebral veins: Angiography - Lateral view
Dural venous sinuses - Cerebral veins: Angiography - Lateral view



Atlas of normal neurovascular anatomy of arteries of the brain on a cerebral angiogaphy
Venous sinuses
Cerebral angiography: Anterior cerebral artery
Brain
Segments of the internal carotid artery (Bouthillier) - Angiography: Cervical segment (C1), Petrous segment (C2)...
Segments of the internal carotid artery (Bouthillier)
Carotid bifurcation - Carotid sinus
Carotid bifurcation
Posterior cerebral artery - Anatomy (Angiography)
Posterior cerebral artery
Vertebral artery - Basilar artery:Cerebral angiography - Lateral view
Vertebral artery
Dural venous sinuses - Cerebral veins: Angiography - Lateral view
Dural venous sinuses
