Introduction

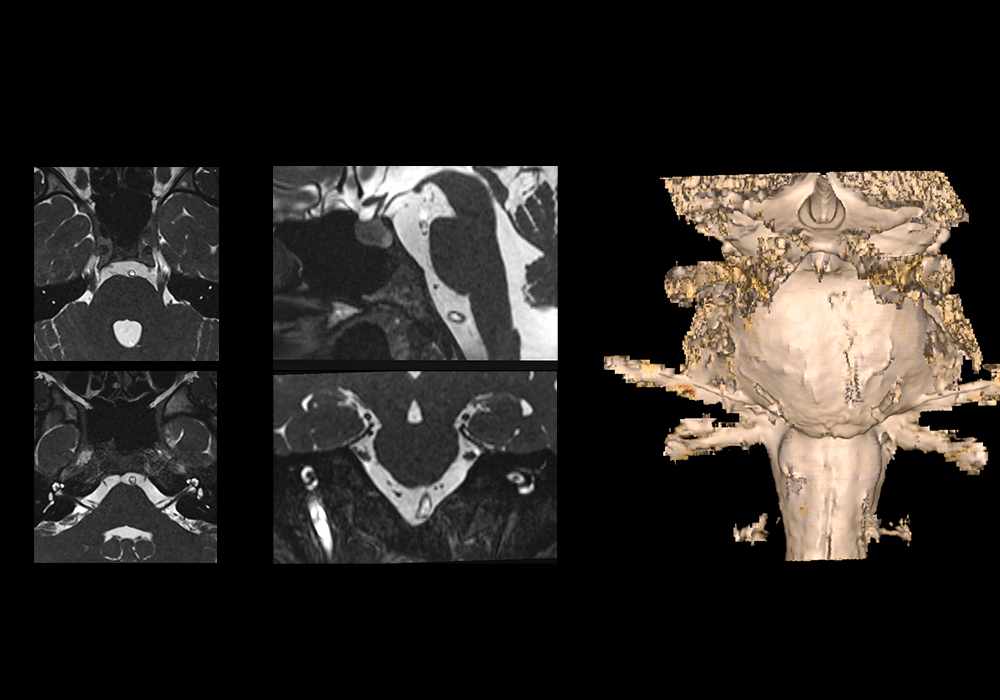

This anatomical module of e-Anatomy is dedicated to the anatomy of the cranial nerves (CN I to CN XII) and brainstem. High resolution CISS 3D MRI images were obtained from a normal posterior cranial fossa examination.
This neuroanatomy atlas of the posterior cerebral fossa has been designed to help radiologists in their daily practice (MRI of trigeminal neuralgia, cochlear schwannoma, facial palsy…) with annotated MR image reconstructions in the main planes (axial, coronal and sagittal), spatial orientation and color-text labels.


Material and methods

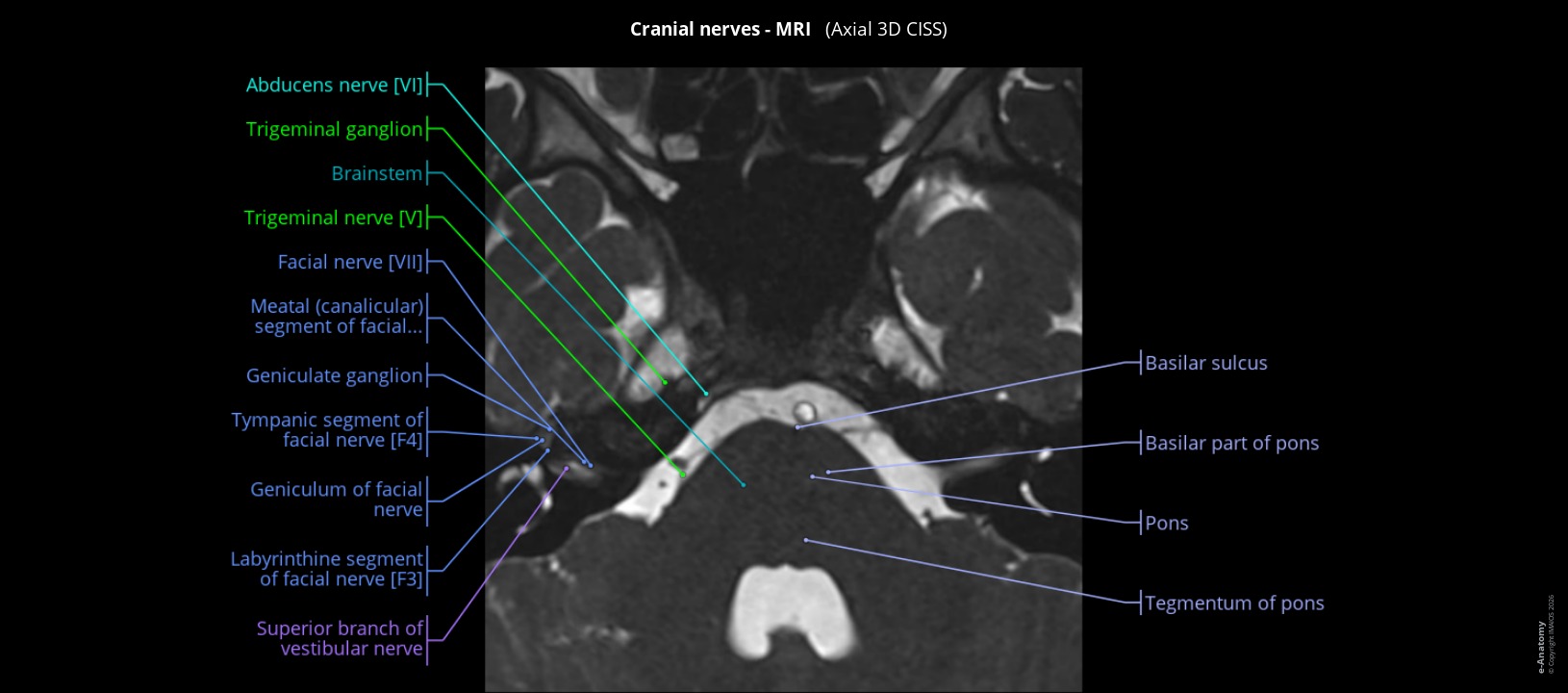

An axial T2 3D CISS (Constructive Interference in Steady State) MRI of the posterior cerebral fossa was carried out on a healthy female patient, using a Siemens 1.5T MRI.
Eighty-eight images of the posterior fossa were obtained from 0,6 mm thick slices.

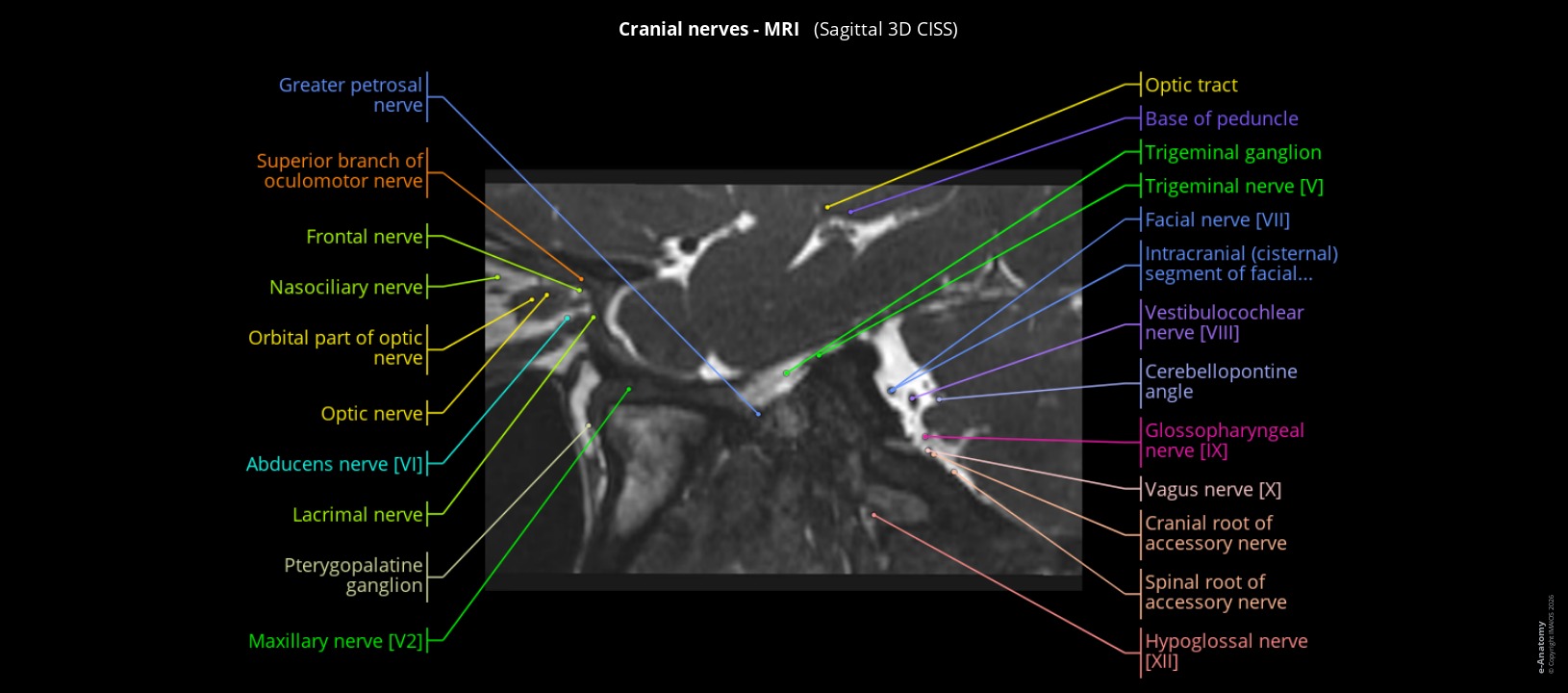

MRI images were post-treated with Horos to obtain MPR reconstructions in sagittal and coronal planes.
The images were then cropped to focus on the emergence of the cranial nerves from the brainstem.
The colored overlays of the nuclei of cranial nerves in the brainstem were approximately drawn and labeled on this exam according to the bibliographic sources available. However, the accuracy is poor, due to the low sensitivity of the T2 3D CISS sequence, making it hard to clearly see the true position of the cranial nerve nuclei.

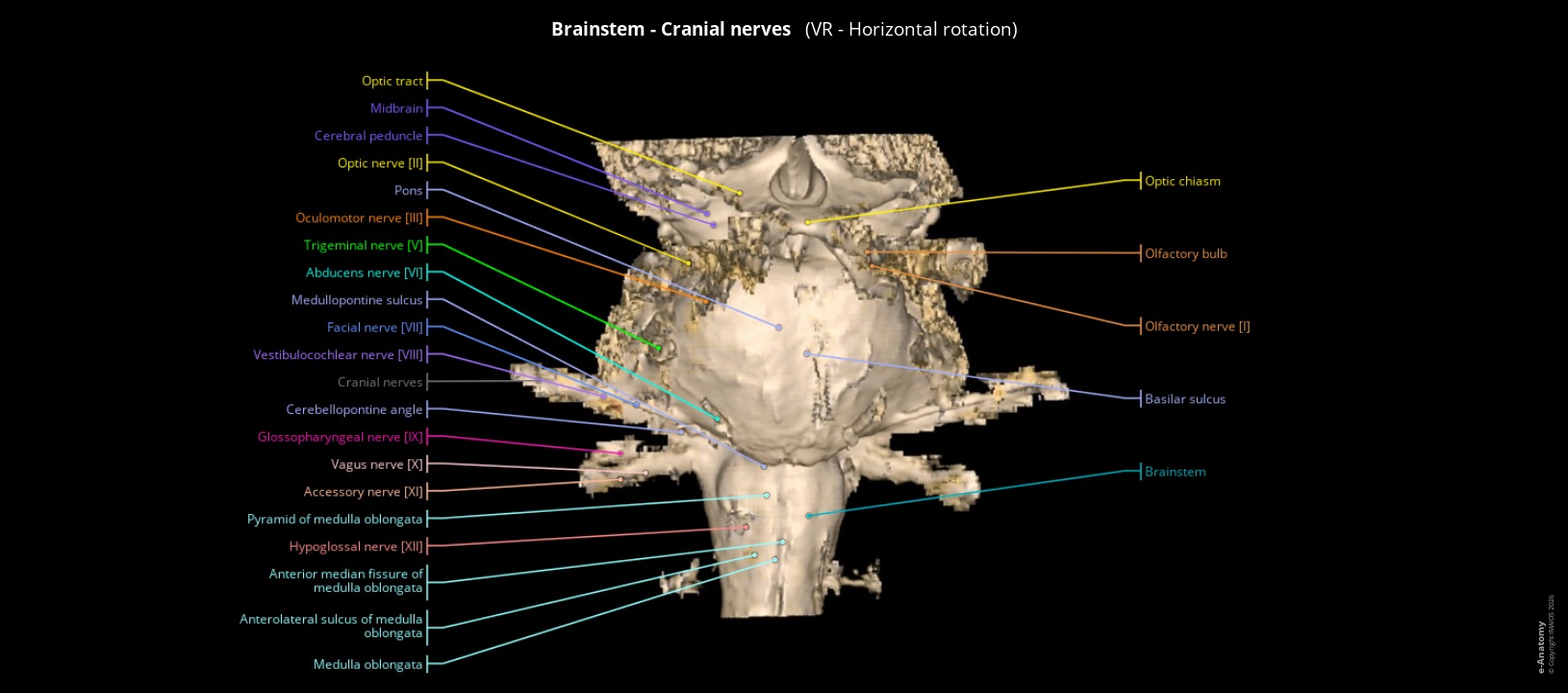

The 3D images of the brainstem and cranial nerves (cochlea, semicircular canals and vestibule) were created using the MRI native on an Advantage Windows - GE.
The anatomical labeling was done by Antoine Micheau M.D. (Radiologist, Montpellier – France), using the Terminologia Anatomica 2 and the Terminologia Neuroanatomica.


  • Muscles
  • Pharynx
  • Respiratory system
  • Telencephalon
  • Diencephalon
  • Cerebellum
  • Brainstem
  • Nuclei of cranial nerves
  • Ventricles of the brain
  • Meninges
  • Cranial subarachnoid cisterns
  • Pituitary gland
  • Cranial nerves
    • Olfactory nerve
    • Optic nerve
    • Oculomotor nerve
    • Trochlear nerve
    • Trigeminal nerve
    • Abducens nerve
    • Cochlear nerve
  • Internal ear
  • Arteries
  • Veins



There is no content here

  • Terminologia Anatomica: international anatomical terminology By the Federative Committee on Anatomical Terminology (FCAT).  Stuttgart:  Georg Thieme Verlag.  ISBN-10: 3-13-114361-4. ISBN-13: 978-3-13-114361-7
  • Sheth S, Branstetter BF 4th, Escott EJ. Appearance of normal cranial nerves on steady-state free precession MR images. Radiographics. 2009 Jul-Aug;29(4):1045-55. doi: 10.1148/rg.294085743. Erratum in: Radiographics. 2009 Sep-Oct;29(5):1544. PMID: 19605655.
  • Cranial nerve anatomy on MRI : https://www.youtube.com/watch?app=desktop&v=Id5JWZq5W6o
  • Qi ST, Fan J, Zhang XA, Pan J. Reinvestigation of the ambient cistern and its related arachnoid membranes: an anatomical study. J Neurosurg. 2011 Jul;115(1):171-8. doi: 10.3171/2011.2.JNS101365. Epub 2011 Mar 11. PMID: 21395390.
