Labeled cross-sectional anatomy of the canine thorax on CT

Labeled cross-sectional anatomy of the canine thorax on CT

Labeled cross-sectional anatomy of the canine thorax on CT

  • Antoine MICHEAU, MD , Denis HOA, MD , Susanne AEB Boroffka, PhD - dipl. ECVDI
    • Antoine MICHEAU, MD : 2 Allée Charles Darwin, 34170 Castelnau-le-lez
    • Denis HOA, MD : 2 Allée Charles Darwin, 34170 Castelnau-le-lez
    • Susanne AEB Boroffka, PhD - dipl. ECVDI : 2 Allée Charles Darwin, 34170 Castelnau-le-lez
  • Publication date: Aug 26, 2016 | Last update: Mar 18, 2025
  • https://doi.org/10.37019/vet-anatomy/429705 ISSN 2534-5087

In this module of the animal atlas vet-Anatomy is displayed the cross-sectional labeled anatomy canine thorax on a Computed Tomography (CT) and on 3D images of the thorax of the dog.

CT images are available in 3 different planes (transverse, sagittal and dorsal) with two kinds of contrast (bones/lungs and soft tissues/mediastinum/vessels). Additional 3D anatomical images at the end are available, showing bones, muscles, vessels, trachea, bronchi and lungs of the thoracic cavity of the dog.

753 anatomical parts have been labeled, separated in different sections:

  • Body parts
  • Regions
  • Bones: Vertebral column, Ribs, Sternum, Bones of thoracic limb, Numbering of vertebrae and ribs
  • Joints
  • Muscles
  • Fascia
  • Trachea
  • Lungs
  • Pulmonary lobes
  • Pleura
  • Mediastinum
  • Heart
  • Pulmonary arteries
  • Pulmonary veins
  • Arteries
  • Veins
  • Lymph nodes
  • Nerves
  • Alimentar canal
  • Liver
  • Lobes of liver
  • Biliary tract
  • Pancreas
  • Spleen
  • Urinary organs
  • Peritoneum

This computed tomography with injection of iodinated contrast agent was performed on a healthy 7 years old Labrador Retriever by Dr. Susanne AEB Boroffka, dipl. ECVDI, PhD (Utrecht, Netherland).

3D rendered images were created from the CT by the Dr. Samuel Merigeaud (Tridilogy - Montpellier, France).

Images displaying, anatomical labeling was done by Dr. Antoine Micheau, Radiologist (Montpellier, France) and Dr. Denis Hoa, Radiologist (Montpellier, France).

Terms are labeled using the Latin terms defined in the Nomina Anatomica Veterinaria (fifth edition - 2012 by ICVGAN). They were translated into english and french by Antoine Micheau - MD, Imaios.



vet-Anatomy: Cross-sectional anatomy of the canine thorax on CT imaging (lungs, trachea, heart, mediastinum, diaphragma, liver, rib cage, thoracic spine)
vet-Anatomy: Cross-sectional anatomy of the canine thorax on CT imaging (lungs, trachea, heart, mediastinum, diaphragma, liver, rib cage, thoracic spine)

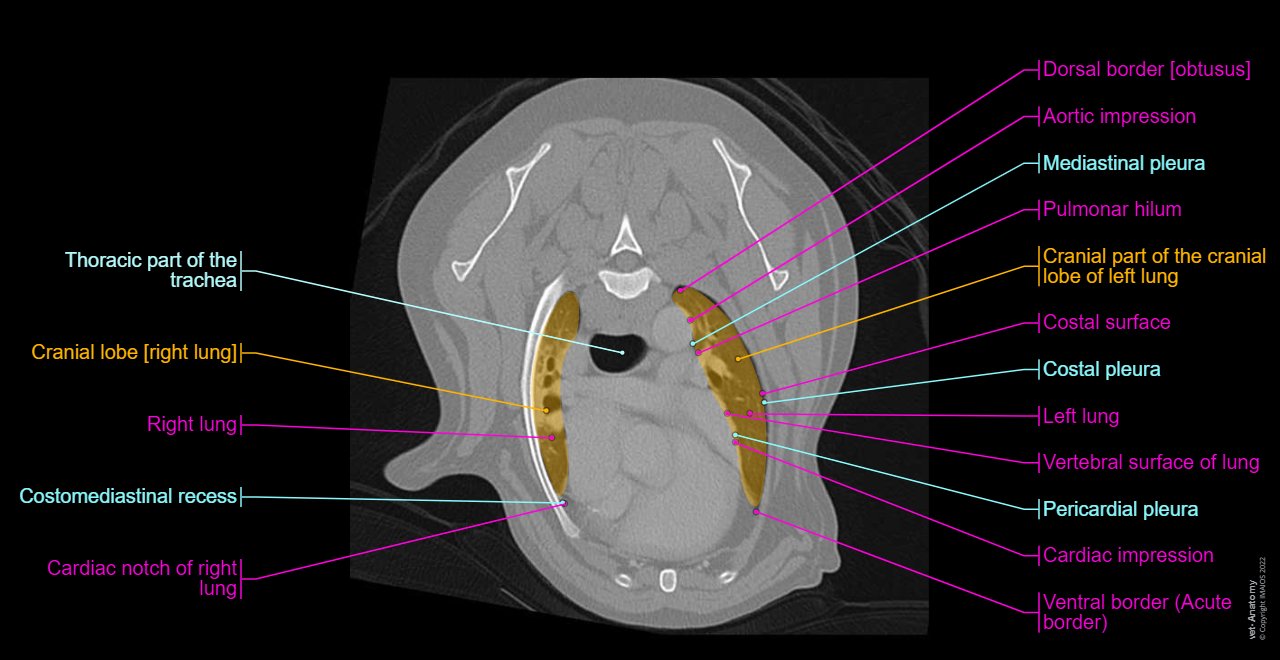

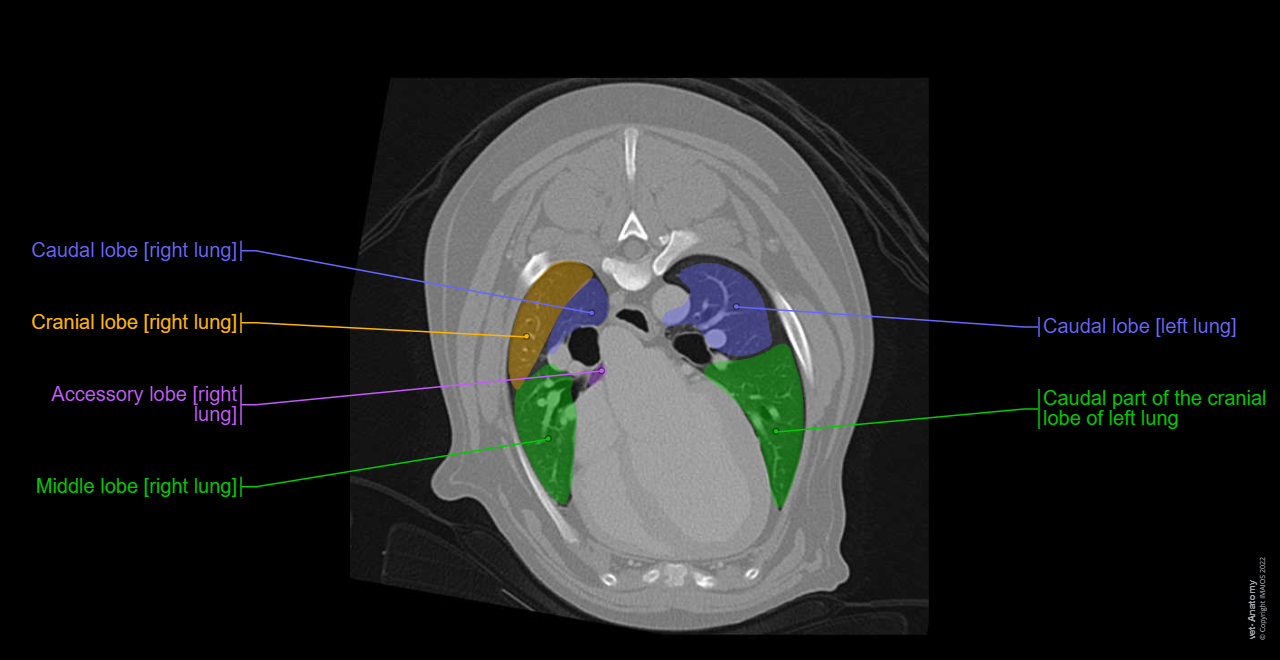

Dog - Pulmonary lobules - CT
Dog - Pulmonary lobules - CT

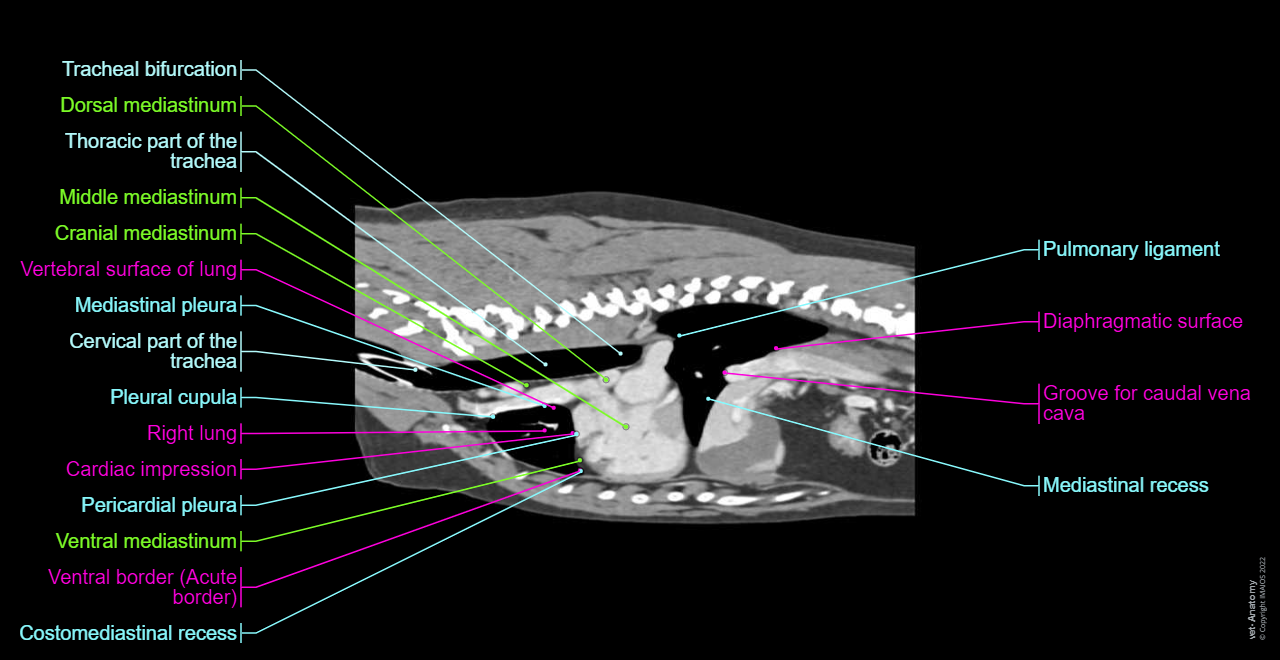

Anatomy of the thorax of the dog on CT:: Mediastinal vessels, Aortic arch, Mediastinum, Heart, Pulmonary arteries, Pulmonary veins
Anatomy of the thorax of the dog on CT:: Mediastinal vessels, Aortic arch, Mediastinum, Heart, Pulmonary arteries, Pulmonary veins

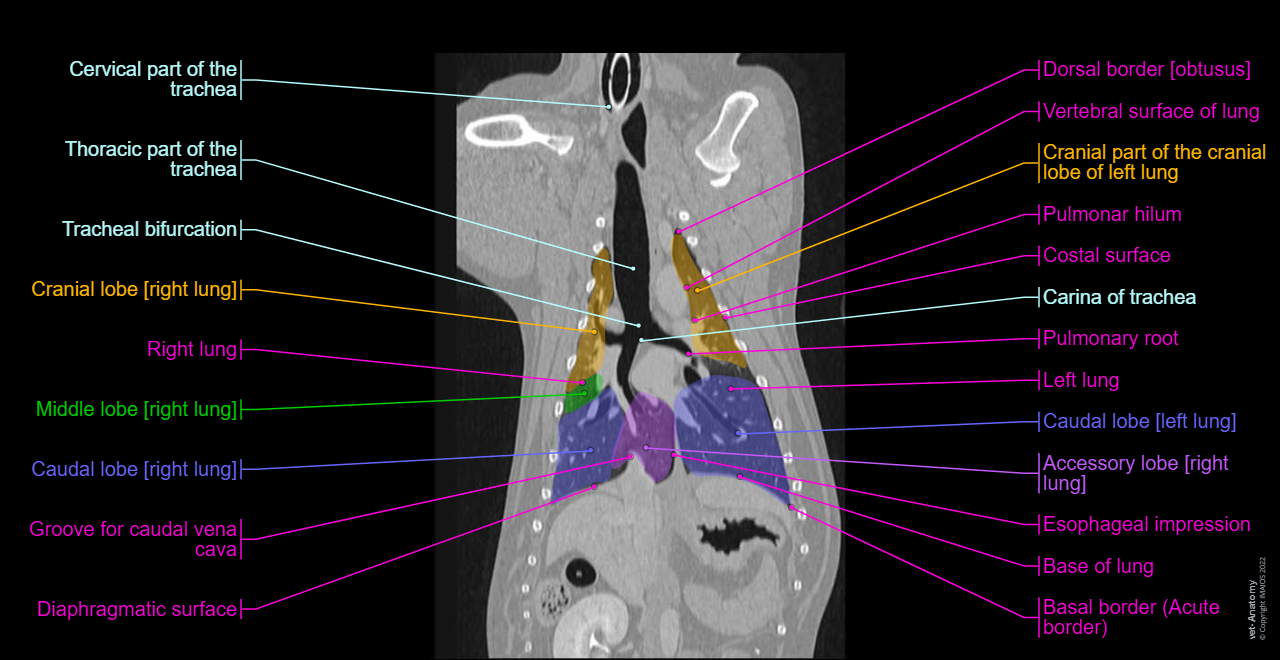

Thorax of the dog: cross-sectional anatomy on Computed Tomography (CT): Lungs, Trachea, Bronchi
Thorax of the dog: cross-sectional anatomy on Computed Tomography (CT): Lungs, Trachea, Bronchi

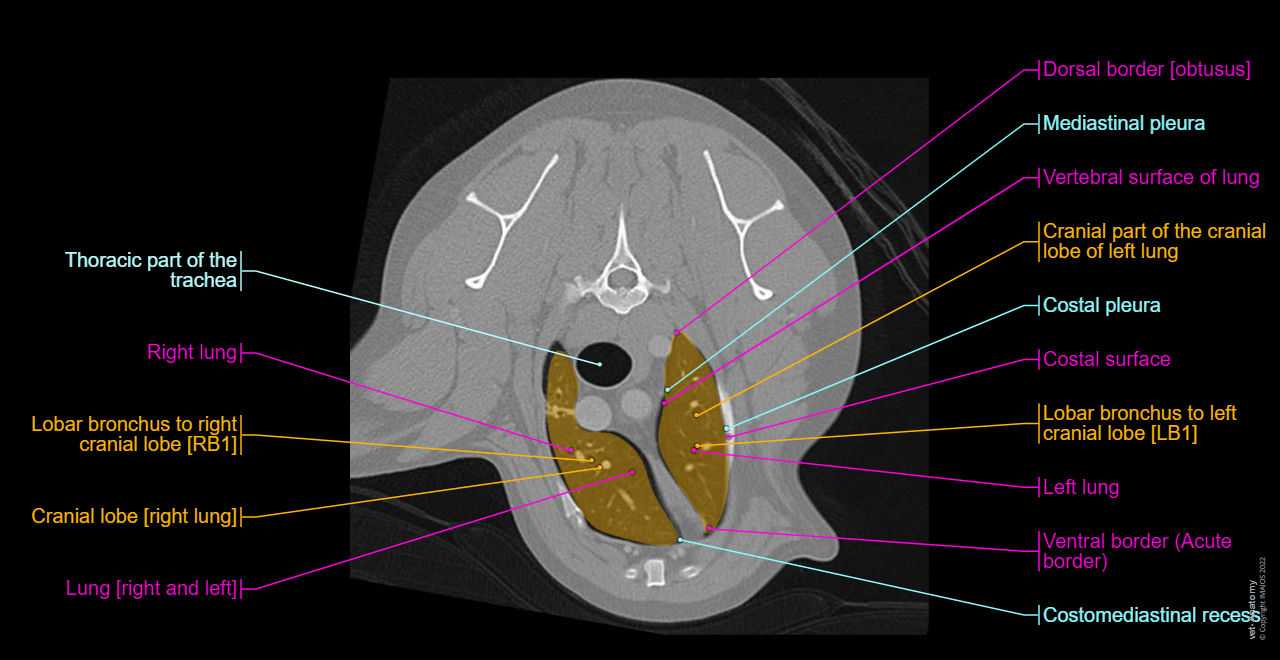

Vertebral column - CT (Labrador): Thoracic vertebrae, Vertebral body, Pedicle of vertebral arch, Spinous process
Vertebral column - CT (Labrador): Thoracic vertebrae, Vertebral body, Pedicle of vertebral arch, Spinous process

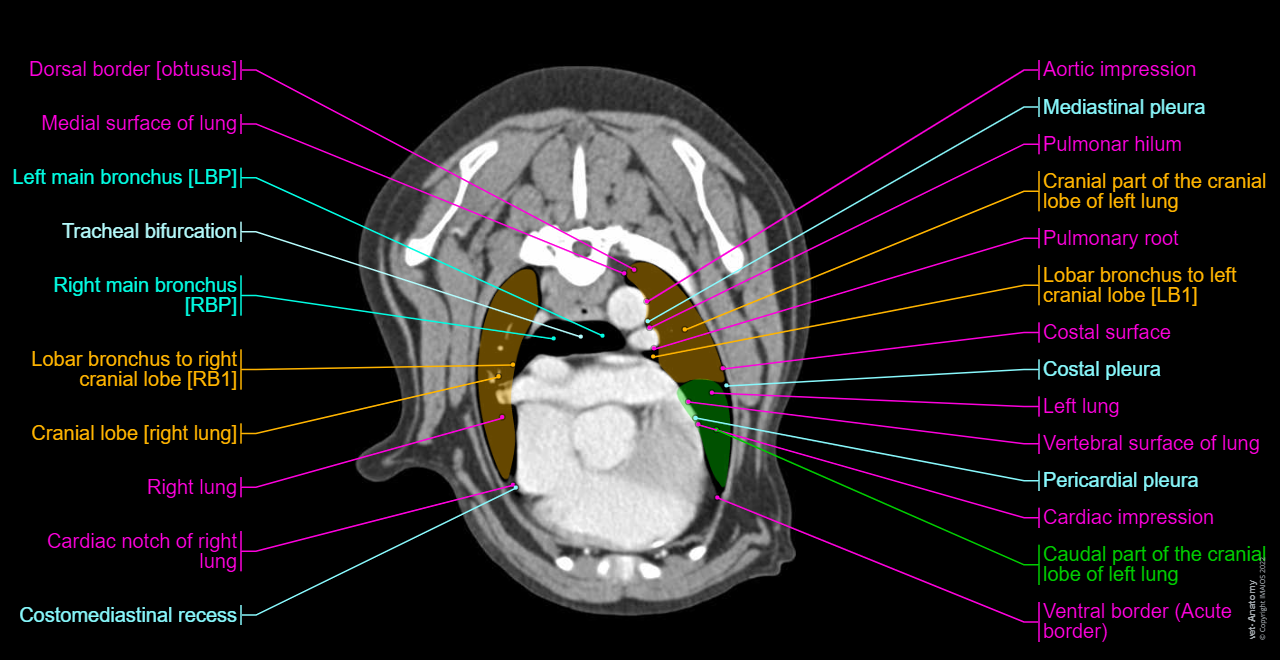

Dog - Muscles of back / Muscles of thorax: Latissimus dorsi muscle, Thoracic rhomboid muscle [Rhomboideus thoracis muscle], Cranial dorsal serrate muscle [Serratus dorsalis cranialis muscle], Erector spinae muscles
Dog - Muscles of back / Muscles of thorax: Latissimus dorsi muscle, Thoracic rhomboid muscle [Rhomboideus thoracis muscle], Cranial dorsal serrate muscle [Serratus dorsalis cranialis muscle], Erector spinae muscles

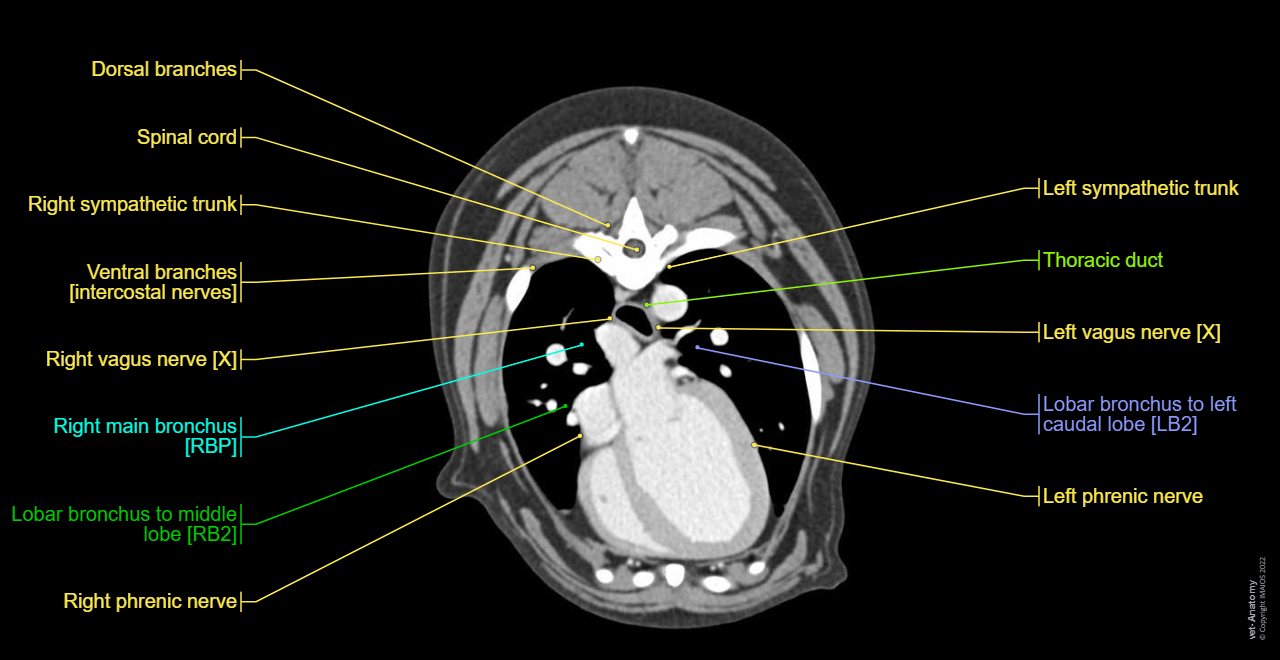

Heart - CT (Animal): Ventricle of heart, Atrium of heart, Myocardium, Right atrioventricular valve [Tricuspid valve], Left atrioventricular valve [Bicsupid valve; Mitral valve]
Heart - CT (Animal): Ventricle of heart, Atrium of heart, Myocardium, Right atrioventricular valve [Tricuspid valve], Left atrioventricular valve [Bicsupid valve; Mitral valve]

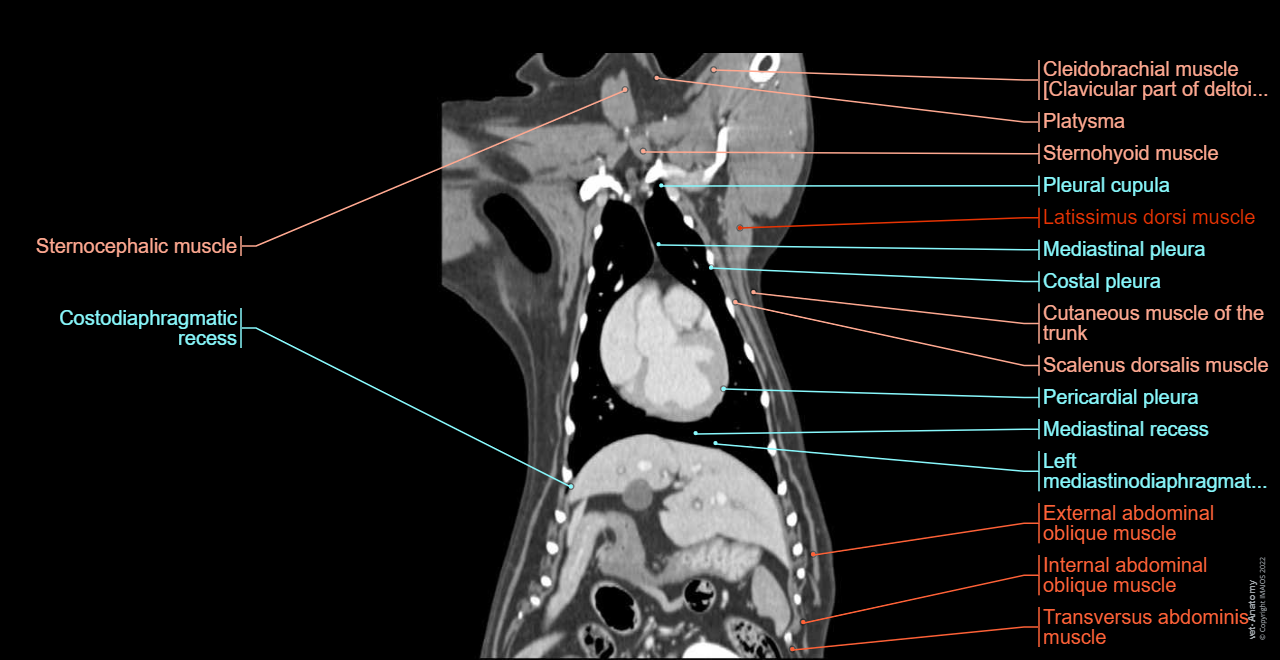

Anatomy - Liver (Dog): Diaphragmatic surface, Visceral surface, Fissure for round ligament, Right lobe of liver, Quadrate lobe, Papillary process (Caudate lobe), Left lobe of liver, Gallbladder
Anatomy - Liver (Dog): Diaphragmatic surface, Visceral surface, Fissure for round ligament, Right lobe of liver, Quadrate lobe, Papillary process (Caudate lobe), Left lobe of liver, Gallbladder

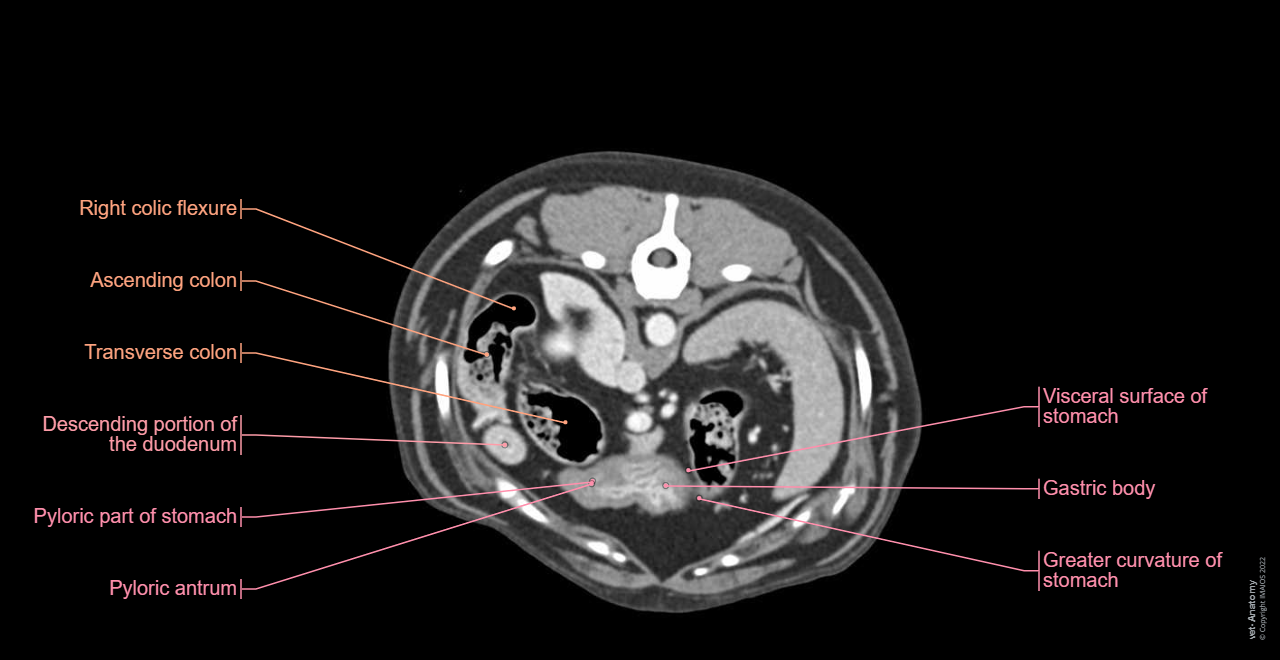

Dog - Abdominal cavity: Spleen, Pancreas, Peritoneum, Stomach, Duodenum
Dog - Abdominal cavity: Spleen, Pancreas, Peritoneum, Stomach, Duodenum



Thorax - Anatomy atlas - 3D: Thoracic cavity, Manubrium of sternum, Sternebrae, Ribs, Mediastinum
Thorax - Anatomy atlas - 3D: Thoracic cavity, Manubrium of sternum, Sternebrae, Ribs, Mediastinum

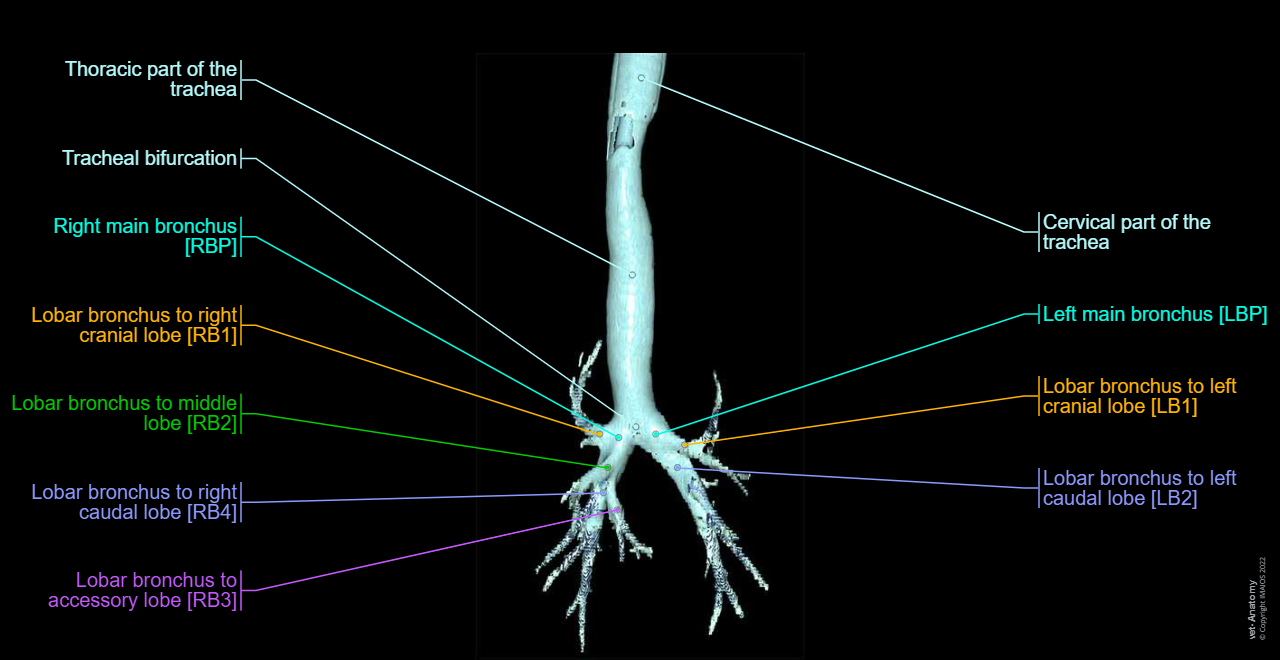

3D - Bronchial tree (Dog): Trachea, Tracheal bifurcation, Main bronchus [right and left], Lobar bronchi
3D - Bronchial tree (Dog): Trachea, Tracheal bifurcation, Main bronchus [right and left], Lobar bronchi

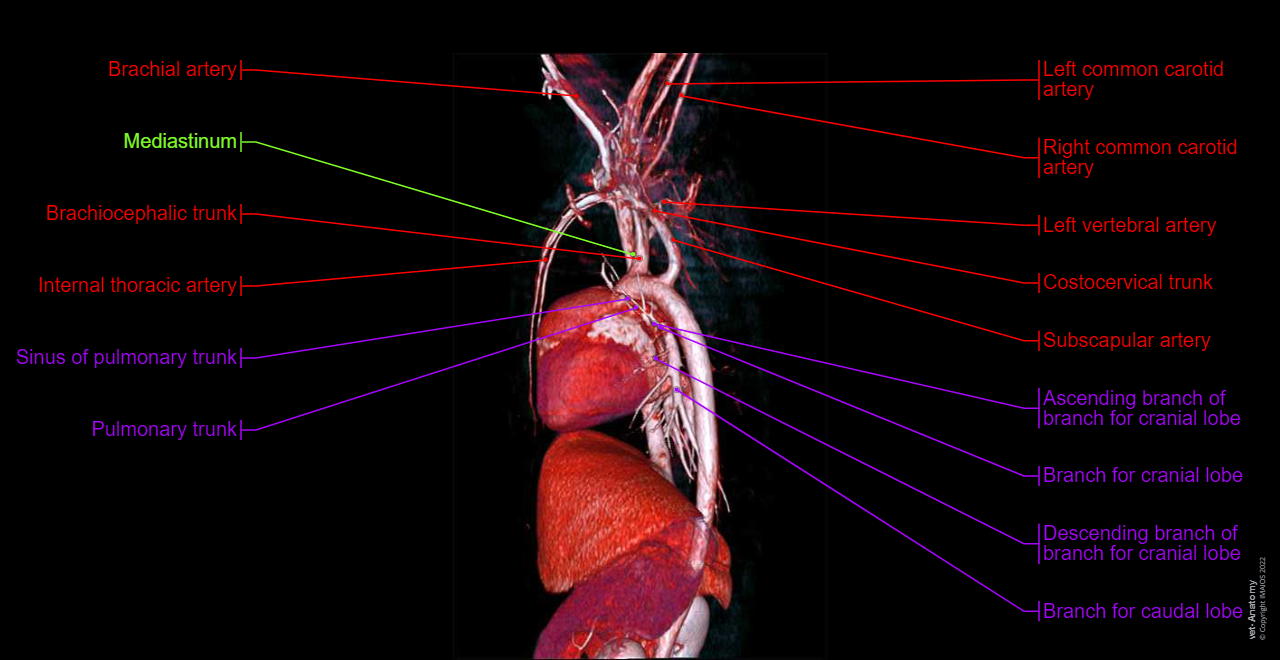

Dog - Mediastinal vessels: Ascending aorta, Brachiocephalic trunk, Left subclavian artery, Thoracic aorta (Descending aorta), Cranial vena cava, Right azygos vein, Pulmonary arteries, Pulmonary veins
Dog - Mediastinal vessels: Ascending aorta, Brachiocephalic trunk, Left subclavian artery, Thoracic aorta (Descending aorta), Cranial vena cava, Right azygos vein, Pulmonary arteries, Pulmonary veins



Dog - Thoracic skeleton: Ribs, Sternum, Xiphoid process, Intercostal space, Sternocostal joints, Sternal synchondroses, Costochondral joints
Dog - Thoracic skeleton: Ribs, Sternum, Xiphoid process, Intercostal space, Sternocostal joints, Sternal synchondroses, Costochondral joints



Muscles of back - Muscles of the thoracic limb (Dog): Trapezius muscle, Thoracic semispinal muscle [Semispinalis thoracis muscle], Multifidus muscles, Thoracic longissimus muscle [Longissimus thoracis muscle], Deltoid muscle
Muscles of back - Muscles of the thoracic limb (Dog): Trapezius muscle, Thoracic semispinal muscle [Semispinalis thoracis muscle], Multifidus muscles, Thoracic longissimus muscle [Longissimus thoracis muscle], Deltoid muscle

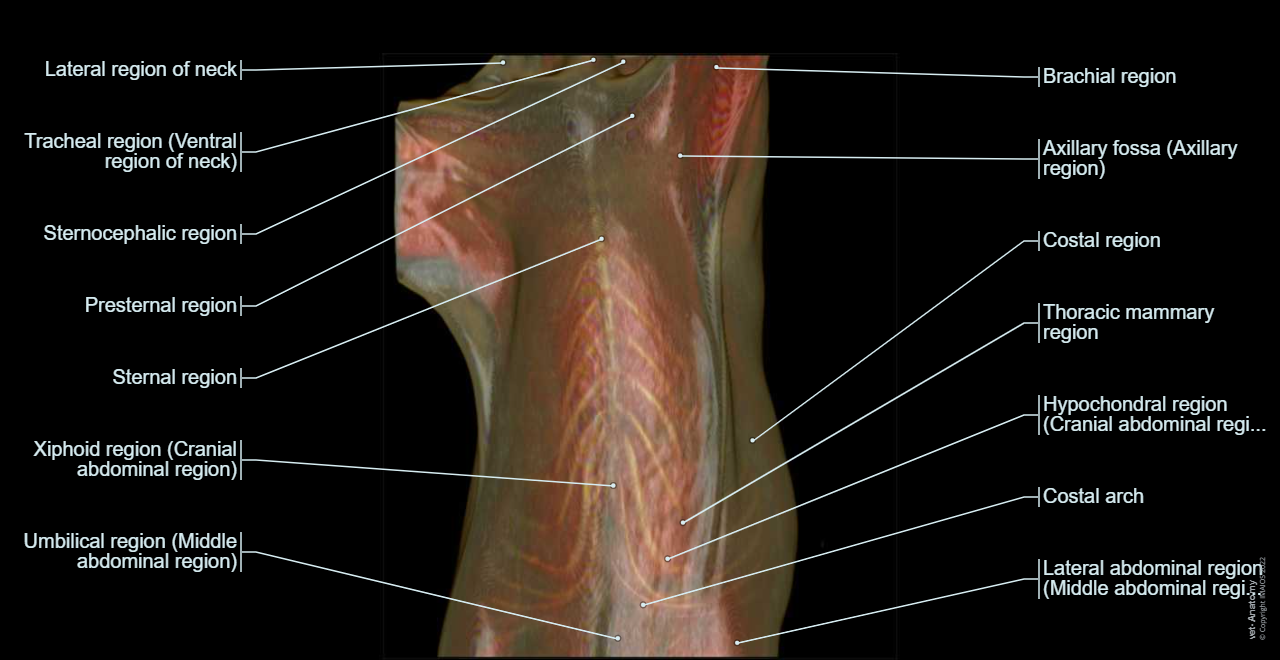

Dog -Surface anatomy: Body parts/ Regions (Pectoral regions, Presternal region, Thoracic mammary region, Costal arch, Xiphoid region (Cranial abdominal region))
