Atlas of anatomy on x-ray images of the dog

Atlas of anatomy on x-ray images of the dog

Atlas of anatomy on x-ray images of the dog

  • Antoine Micheau, MD , Denis HOA, MD , Susanne AEB Boroffka, PhD - dipl. ECVDI
    • Antoine Micheau, MD : 2 Allée Charles Darwin, 34170 Castelnau-le-lez
    • Denis HOA, MD : 2 Allée Charles Darwin, 34170 Castelnau-le-lez
    • Susanne AEB Boroffka, PhD - dipl. ECVDI : 2 Allée Charles Darwin, 34170 Castelnau-le-lez
  • Publication date: Feb 6, 2019 | Last update: Mar 18, 2025
  • https://doi.org/10.37019/vet-anatomy/402856 ISSN 2534-5087

This module of vet-Anatomy is a basic atlas of normal imaging anatomy of the dog on radiographs. 51 sampled x-ray images of healthy dogs performed by Susanne AEB Borofka (PhD - dipl. ECVDI, Utrecht, Netherland) were categorized topographically into seven chapters (head, vertebral column, thoracic limb, pelvic limb, larynx/pharynx, thorax and abdomen/pelvis).

648 differentiated anatomical terms were labelled by Antoine Micheau (MD, Montpellier, France), using different colors to improve the survey and the identification of searched structures on each radiograph.

Terms were labelled using the Latin terms defined in the Nomina Anatomica Veterinaria (fifth edition - 2012 by ICVGAN). They were translated into English and French by Antoine Micheau - MD, Imaios

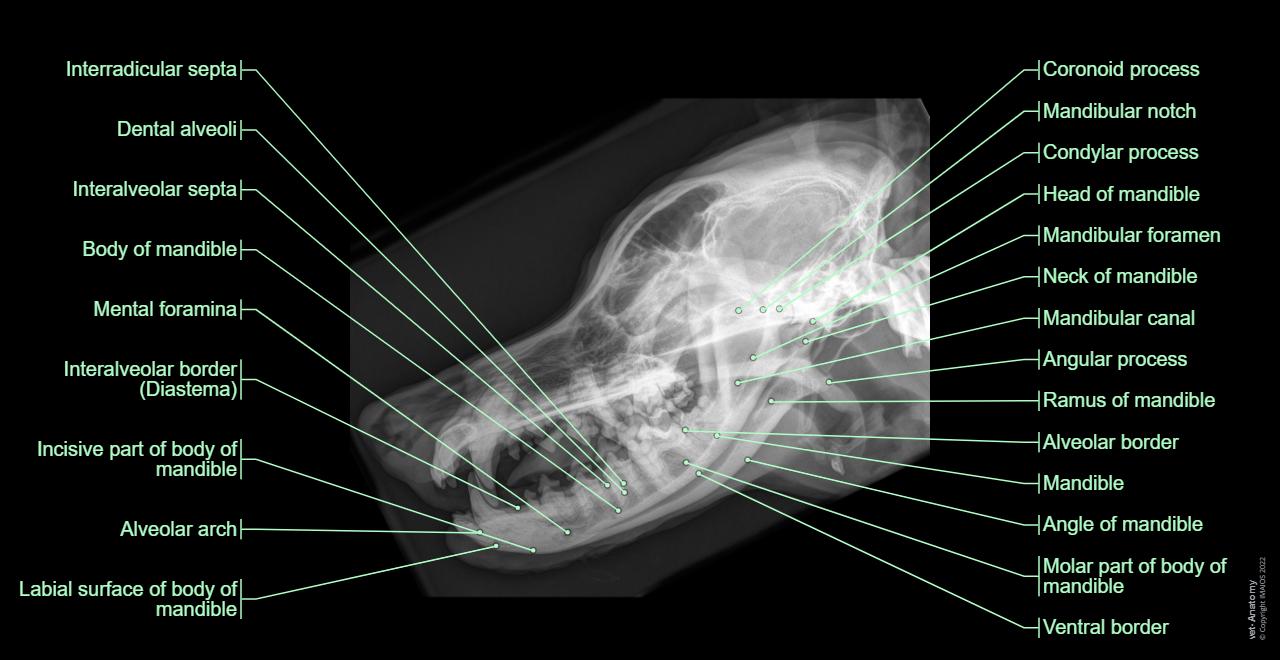

vet-Anatomy: Dog - Osteology (Radiographs) - Head - Latero-lateral
vet-Anatomy: Dog - Osteology (Radiographs) - Head - Latero-lateral

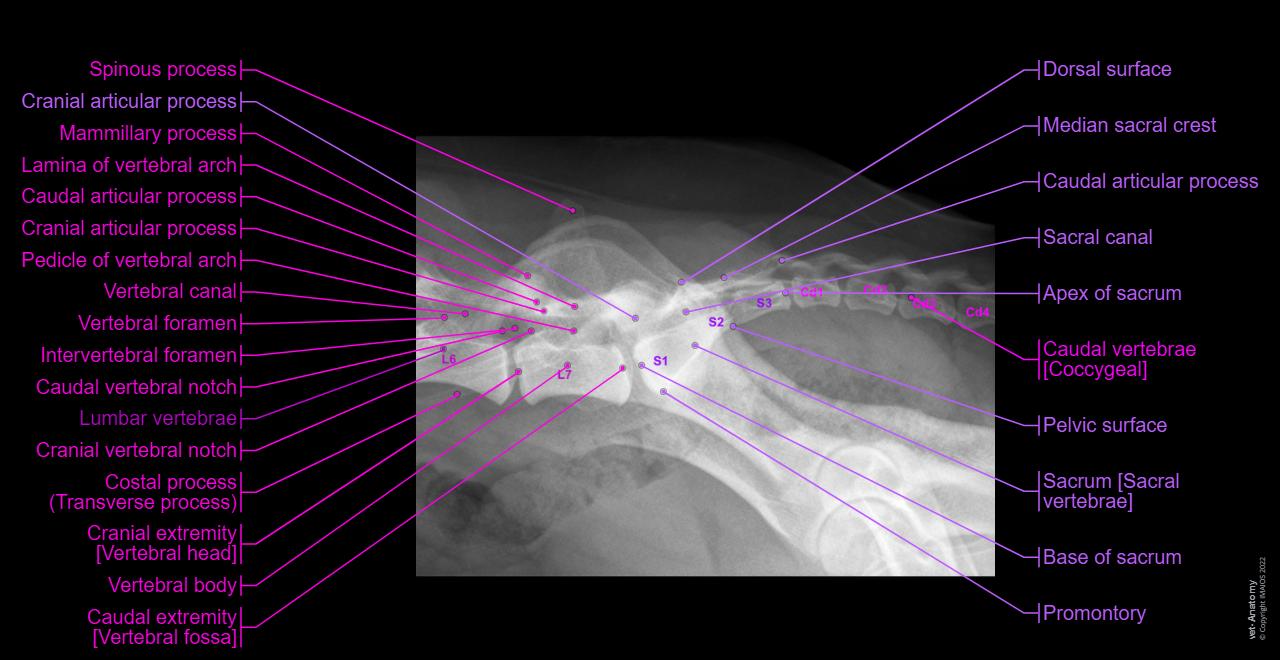

Lumbosacral vertebral junction - Belgian Shepherd - 25 months - Latero-lateral
Lumbosacral vertebral junction - Belgian Shepherd - 25 months - Latero-lateral

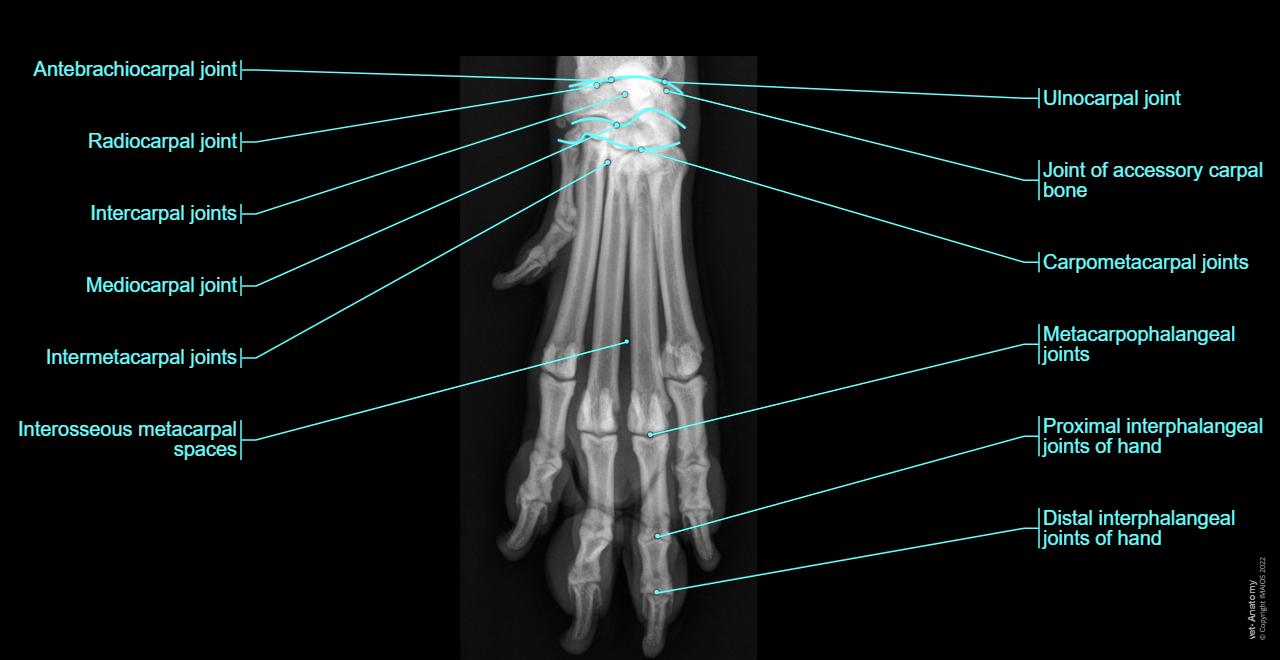

Manus/Carpus/Metacarpus/Fingers of hand - Dorso-palmar (Radiograph - Labrador - 3 years)
Manus/Carpus/Metacarpus/Fingers of hand - Dorso-palmar (Radiograph - Labrador - 3 years)

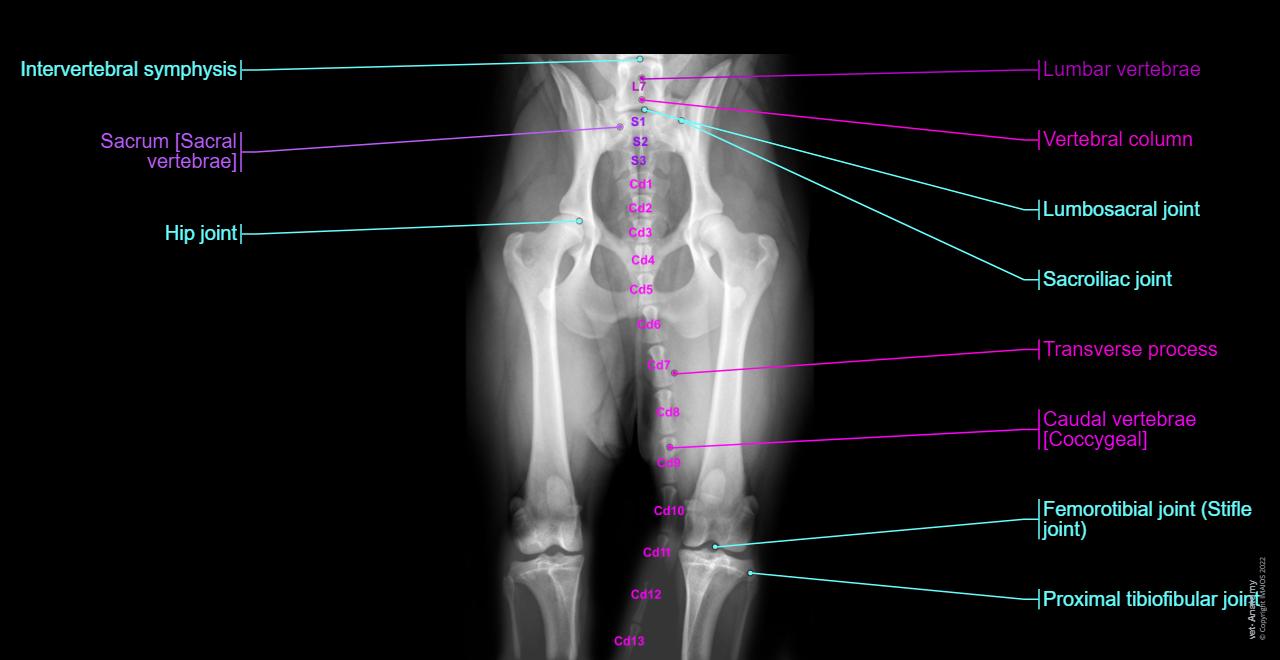

Golden retriever - 13 months - X-ray: Pelvis, Bones of the pelvic limb
Golden retriever - 13 months - X-ray: Pelvis, Bones of the pelvic limb

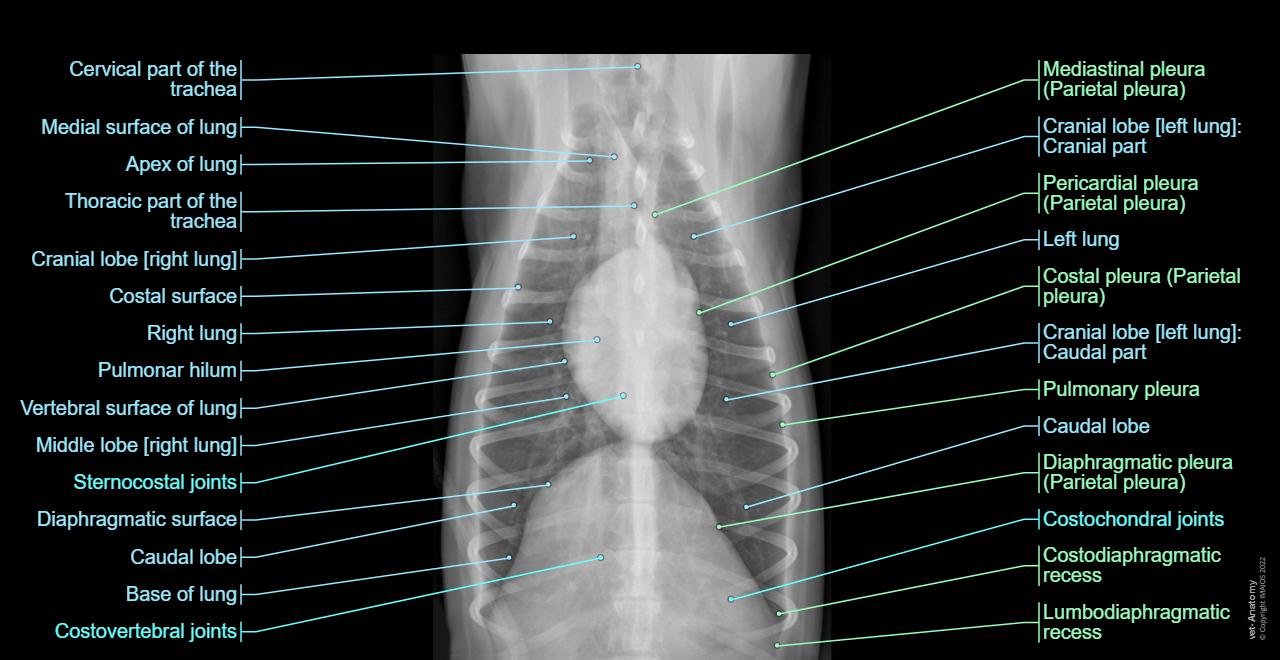

Thorax - Radiograph (Dog: German shepherd - 3 years)
