This module of vet-Anatomy presents 141 labeled anatomical illustrations of the osteology of the horse, specially illustrated and selected for veterinary students and equine veterinarians.

All illustrations of the equine osteology in this atlas of veterinary anatomy are original content created by Antoine Micheau - MD and are under the copyright of IMAIOS.

Sources and bibliography for text and illustrations:

  • Anatomy of the Horse, An illustrated text. Sixth Edition by Klaus Dieter Budras, W. O. Sack, Sabine Rock, Aaron Horowitz, Rolf Berg (ISBN: 9783899936667)
  • Veterinary Anatomy of Domestic Mammals. Textbook and Colour Atlas. Edited by: Horst Erich König. Veterinarmedizinische Universität Wien, Austria
  • Illustrated Veterinary Anatomical Nomenclature.  Oskar Schaller, Gheorghe M. Constantinescu. Georg Thieme Verlag, 2007
  • Ostéologie Comparée des Carnivores Domestiques, des Equidés et des Bovins. Unité d'Anatomie de l'E.N.V.A. http://theses.vet-alfort.fr/Th_multimedia/mraffaelli/
  • Online Veterinary Anatomy Museum http://www.onlineveterinaryanatomy.net/
  • Handbuch der Anatomie der Tiere für Künstler (hosted by the University of Wisconsin Digital Collections) https://uwdc.library.wisc.edu/collections/science/vetanatimgs/
  • Archéozoothèque https://www.archeozoo.org/archeozootheque/
  • The Equine Distal Limb. An Atlas of Clinical Anatomy and Comparative Imaging 2014. Edited by Jean-Marie Denoix, CRC Press, Boca Raton, FL.
  • Essentials of Clinical Anatomy of the Equine Locomotor System 2019. Edited by Jean- Marie Denoix, CRC Press, Boca Raton, FL.

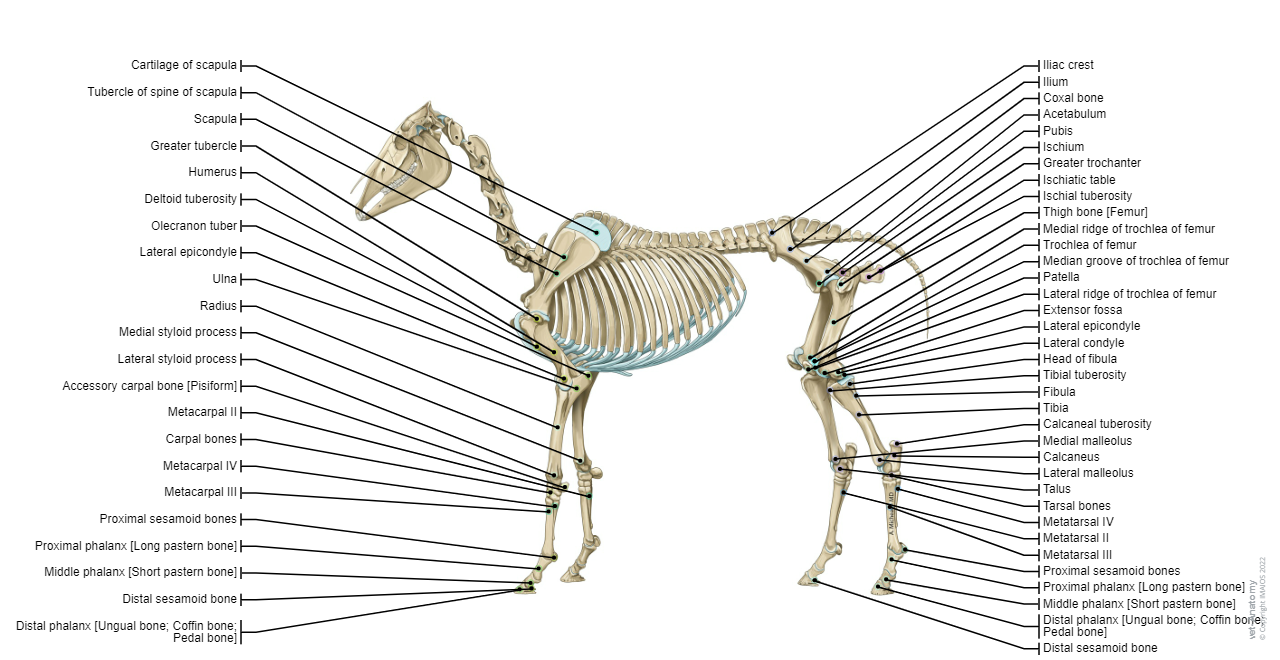

vet-Anatomy: Atlas of equine anatomy: osteology of the horse (skeleton, thoracic and pelvic limbs)
vet-Anatomy: Atlas of equine anatomy: osteology of the horse (skeleton, thoracic and pelvic limbs)



Horse - Bones of the cranium (Occipital bone, Temporal bone, Parietal bone...)
Horse - Bones of the cranium (Occipital bone, Temporal bone, Parietal bone...)



Horse-Osteology: Cranium, Sutures of the head
Horse-Osteology: Cranium, Sutures of the head



Vertebral column (Labeled atlas of veterinary anatomy: equine osteology on illustrations)
Vertebral column (Labeled atlas of veterinary anatomy: equine osteology on illustrations)



Horse-Anatomy atlas: Vertebra C6
Horse-Anatomy atlas: Vertebra C6

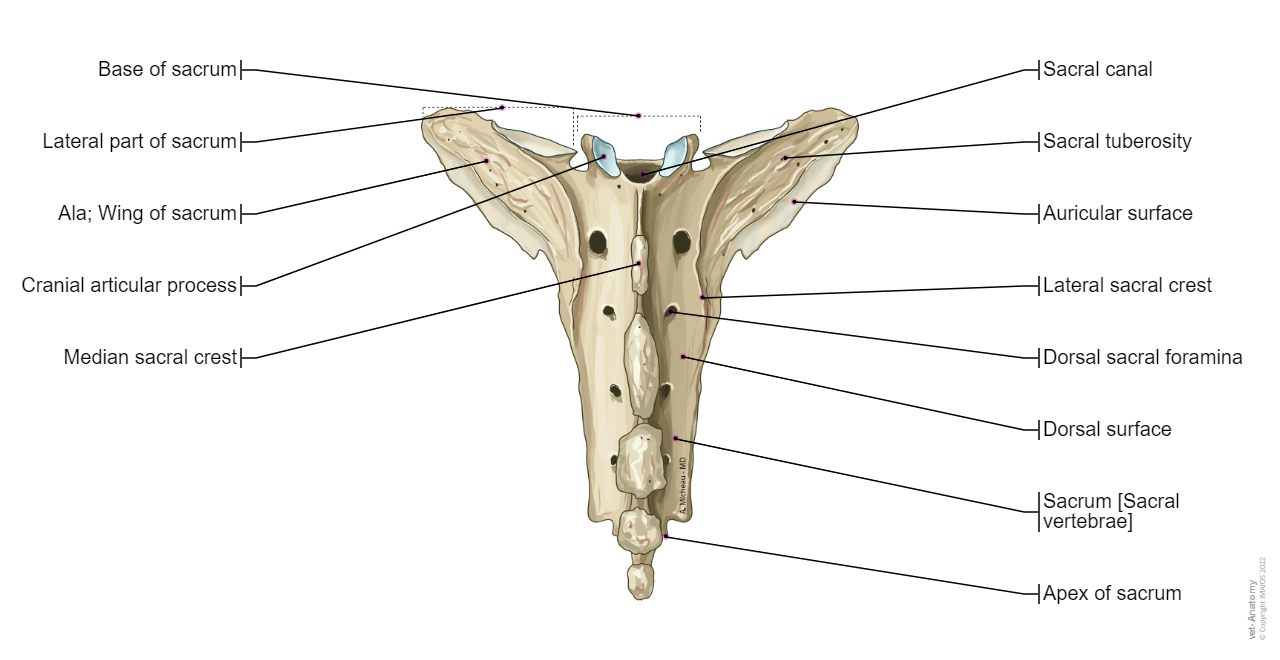

Sacrum [Sacral vertebrae]- (Horse (Dorsal view)
Sacrum [Sacral vertebrae]- (Horse (Dorsal view)



Horse - Skeletal system: Thoracic skeleton, Ribs, Costal cartilage, Sternum
Horse - Skeletal system: Thoracic skeleton, Ribs, Costal cartilage, Sternum

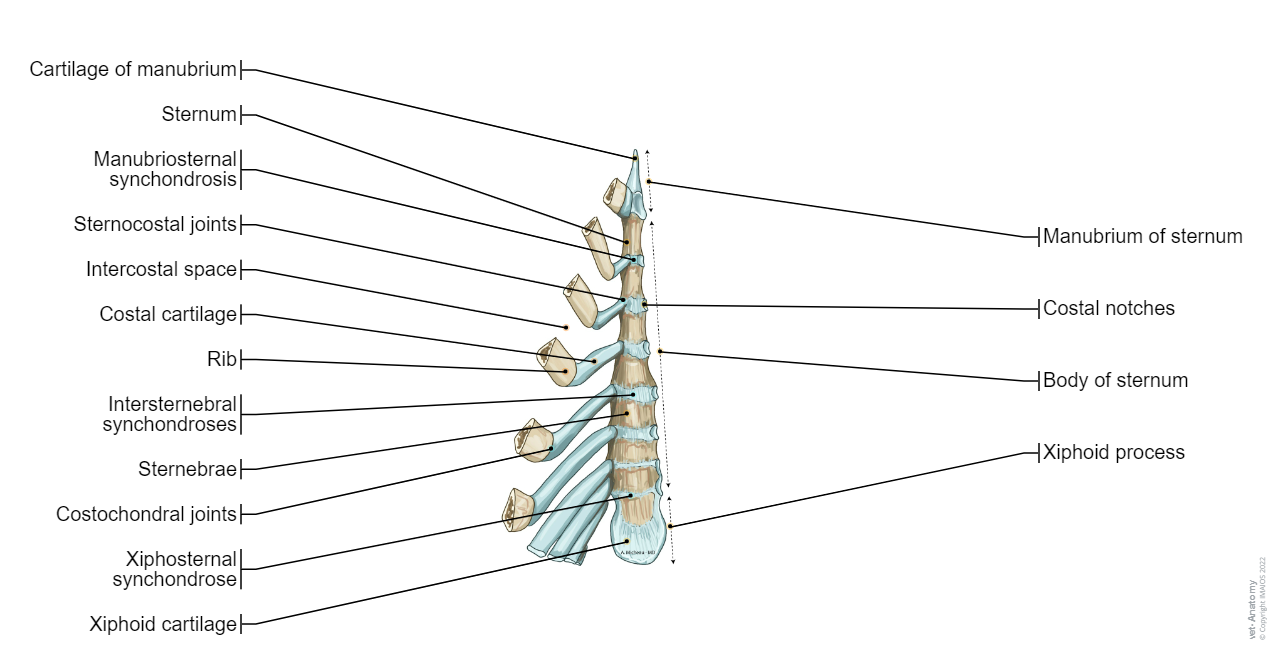

Sternum-Veterinary anatomy (Horse):Manubrium of sternum, Cartilage of manubrium, Sternebrae, Xiphoid process
Sternum-Veterinary anatomy (Horse):Manubrium of sternum, Cartilage of manubrium, Sternebrae, Xiphoid process

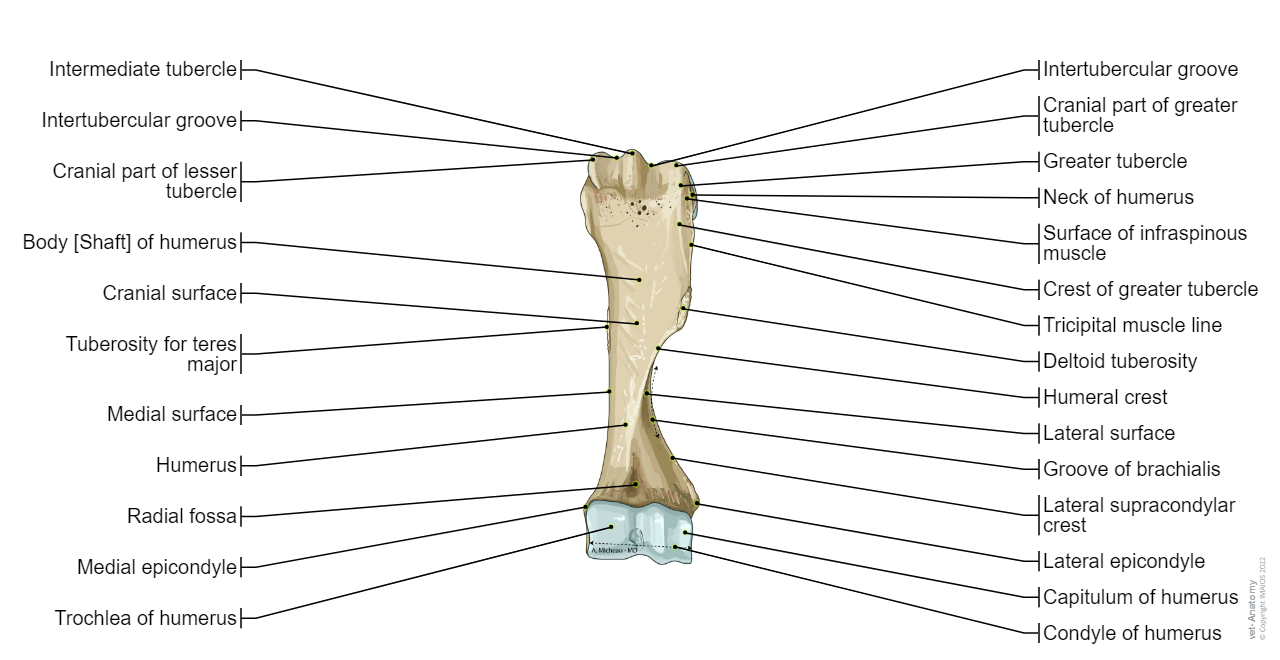

Bones of the thoracic limb - Horse: Humerus
Bones of the thoracic limb - Horse: Humerus



Radius/Ulna (Horse): Olecranon tuber,  Styloid process, Antebrachial interosseous space
Radius/Ulna (Horse)

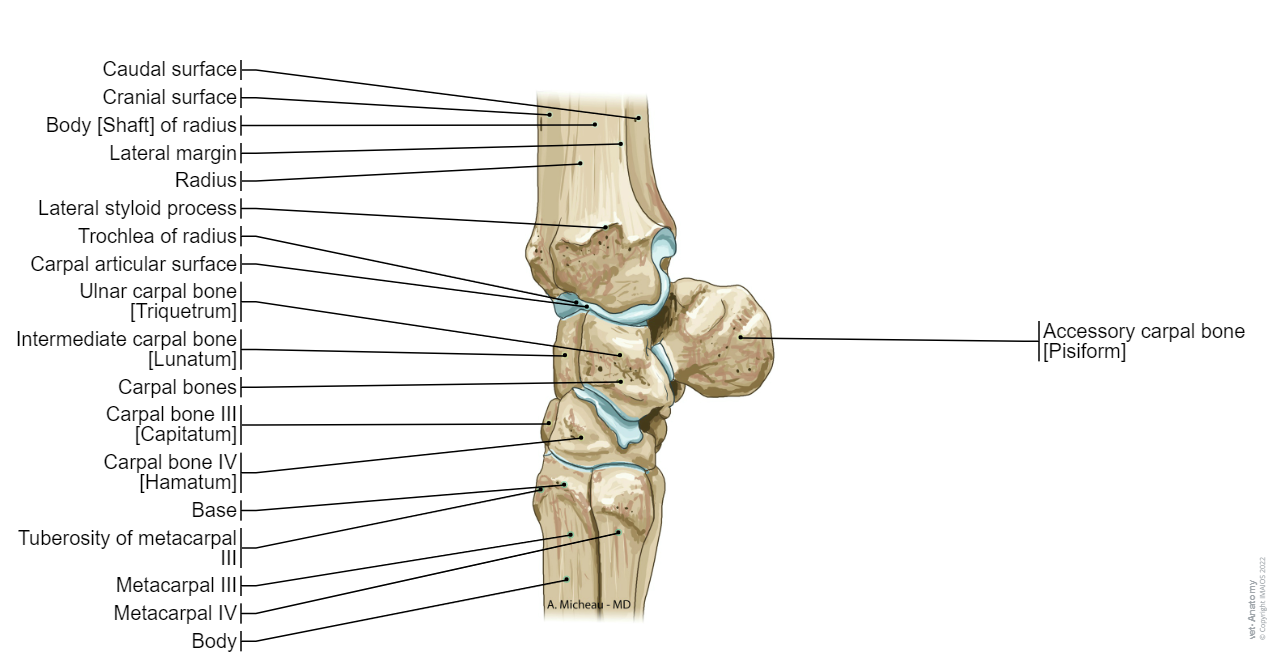

Horse-Veterinary anatomy: Carpal bones
